Shop - AEMC 512 Digital Clamp Meter

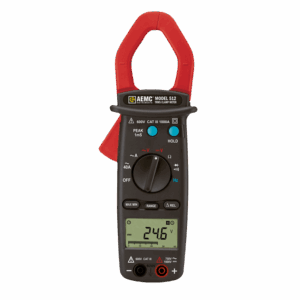

The Clamp-on Meter Model 512 is a general purpose professional instrument that measures up to the toughest standards. It is built into a rugged mechanical case and is designed using quality polycarbonate materials. This meter offers a complete set of measurement ranges and is in compliance with international safety and quality standards to ensure a professional and reliable measuring tool. The Model 512 is auto-ranging and provides the best measurement range and resolution for troubleshooting. It has a high resolution 40A range. The Model 512 measures AC current, AC and DC voltage, resistance, continuity with beeper, and frequency from V or A. It also features a diode test function.

The Model 512 is sized for comfortable, one-handed operation. This model is a True RMS clamp-on that provides RMS measurements for today’s non-linear electrical environments.

FEATURES

• Standard size, full function clamp-on meter
• 1000Aac or 1000Aac/dc current measurements
• Measures up to 750Vac and 1000Vdc
• TRMS measurements
• Resistance measurements to 4000Ω
• Continuity with beeper below 40Ω
• Frequency measurements from V and A
• Diode test
• 1ms peak function for fast capture of signals
• Hold function to “freeze” readings
• Push-button for easy Adc zeroing (Model 514)
• Large, easy-to-read, 4000-count LCD display
• 42-segment analog bargraph
• Includes test leads, soft carrying pouch
and batteries
