AEMC 6471 Ground Resistance Tester Kit
Kit includes meter, carrying bag for kit, two 300ft or 500ft colour coded leads on spools (red/blue), two 5ft colour coded leads, two 100ft colour coded leads (hand tied green/black), two SR182 current probes, rechargeable NiMH batteries, optical USB cable, power adapter. 4 x “T” shaped ground electrodes, set of 5 spade lugs, 1 x 100ft tape measure and USB drive supplied with Dataview software, ground tester workbook, and user manual
- Description
Description

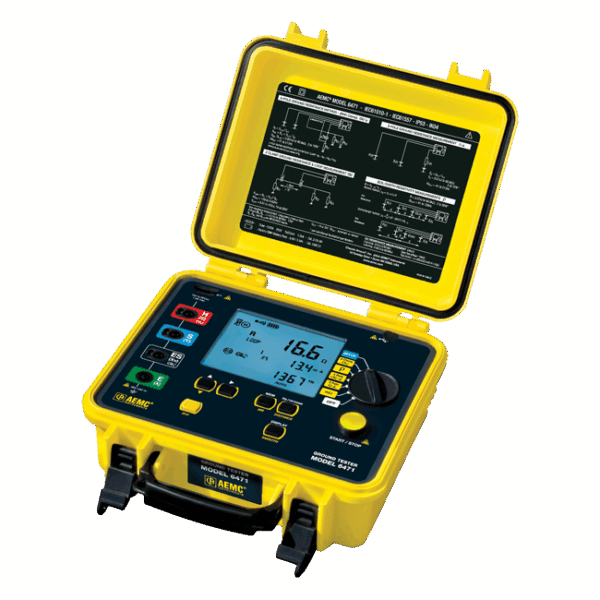

Ground Resistance Tester Model 6471
The Digital Ground Resistance Tester Model 6471 is a portable measurement instrument designed to measure Ground Resistance with 2 clamps (sold separately), no auxiliary rods, Bond/Connection Resistance (2-Pole and 4-Pole Kelvin sensing), Ground Resistance (3-Pole or 4-Pole), Ground Coupling Resistance, and Selective Ground Resistance, Soil Resistivity (Wenner or Schlumberger method). The Model 6471 measures from 0.01 to 99.99kΩ and is auto-ranging, automatically seeking out the optimum measurement range, test frequency and test current.
Ground Resistance Tester using the 2 clamp method (no auxiliary rods needed) 2 and 4 point bond resistance/continuity with automatic polarity reversal. 3 point fall of potential measurement
4 point soil resistivity measurement with automatic calculation of RHo
Manual and automatic frequency scan from 41 to 578Hz. Selectable test voltage of 16 or 32v up to 250mA of test current. Automatic recognition of all electrode connections and their resistance value
Rugged dustproof and water resistant field case (IP53 rated in closed position). Includes dataview software for set up and data retrevial, real time display analysis and report generation and system configuration
FEATURES
• Ground Resistance testing using the 2-clamp method
(no auxiliary rods needed)
• 2- and 4-Point Resistance/Continuity measurement
(DC Resistance) with automatic polarity reversal
• 3-Point Fall-of-Potential measurement with
manual or automatic frequency selection
• 4-Point Soil Resistivity measurement with automatic
calculation of Rho (ρ) and user selection of the
Wenner or Schlumberger test method
• 3-Point Earth Coupling measurement
• Manual and automatic frequency scan from
(41 to 5078) Hz for optimum test accuracy in
electrically noisy environments
• Selectable test voltage of (10, 16, 32 or 60) V up to
250 mA of test current (model dependent)
• Auto Power OFF feature
• Automatic recognition of all electrode connections
and their resistance value
• Stores up to 512 complete test results in internal memory
• Display with automatic backlight when
entering a function
• Optically isolated USB communication cable included
• Rechargeable NiMH batteries from wall charger or
vehicle power (CAT. #2135.43 needed for vehicle power)
• Rugged dustproof and water-resistant field case
(IP53 rated in closed position)
• Grounding standards IEC 61557 parts 4 and 5 compliant
• Includes DataView®
software for set up, data retrieval,
real-time display, analysis, report generation and
system configuration
• Can also be used for Continuity tests on bonding
