AEMC 8345 PowerPad® IV
The PowerPad® IV Model 8345 is a 1000 V three-phase Class A power quality analyzer that is easy-to-use, has an on-screen set-up and internal GPS clock, and offers the highest measurement accuracy. It provides comprehensive features, numerous calculated values, and several processing functions enabling technicians and engineers to measure and carry out diagnostics and power quality work on all existing one, two or three phase networks. It is in full compliance with IEC 61000-4-30 Class A and is safety rated to 1000 V CAT IV.
- Description
Description

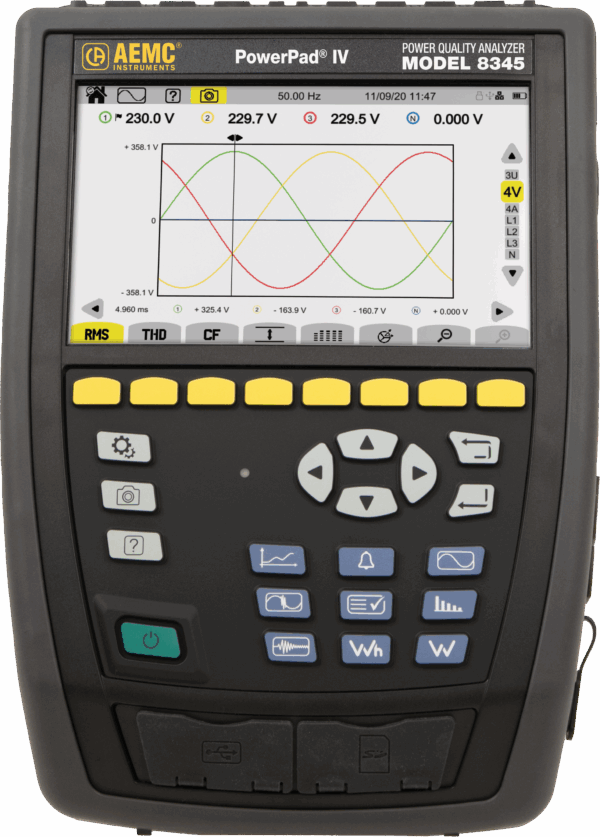

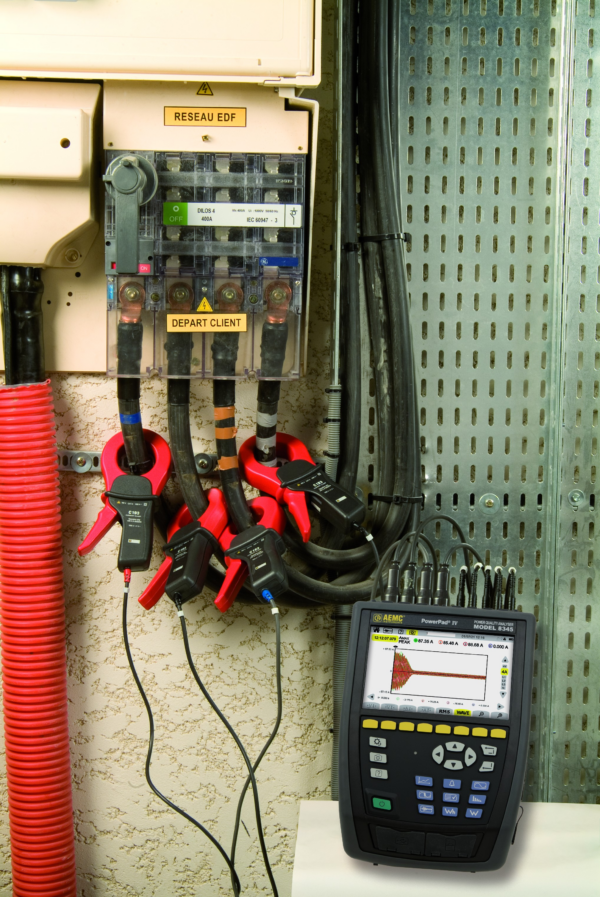

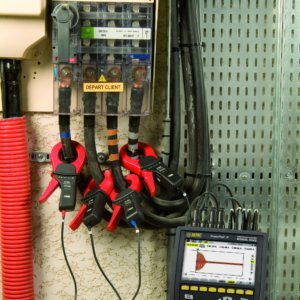

PowerPad® IV Model 8345
The PowerPad® model 8345 is a portable three-phase, Class A Power Quality Analyzer that enables technicians and engineers to measure and perform diagnostics and power quality work on one, two or three phase networks. This very advanced event recorder meets the highest performance and measurement time accuracy requirements providing a large number of calculated values and processing functions to make installations and maintenance easier.
This power and energy analyzer allows the measurement of voltage, current, frequency, etc. The display of the curves is completely automatic and goes up to 10 complete cycles at 50 Hz, 12 cycles at 60 Hz. All power and energy measurements, and other associated parameters, necessary for a good analysis of an electrical installation in terms of its energy efficiency, are carried out according to the IEC 61000-4-30 and IEEE 1459 standards.
FEATURES:
- IEC 61000-4-30 Class A standard
- 5 V to 1000 VAC and VDC Voltage
- 400 kSps voltage and 200 kSps current sampling and surge 2 MSps sampling rate
- Shockwaves up to 12 kV every 500 ns
- Works on all existing electrical networks (single phase, three phase, wye, delta, etc.)
- Harmonics – DC to 63rd order and Interharmonics 0 to 62nd order
- Power W, VA, VAR (N, Q1 and D) measurements
- USB, Ethernet, Webserver and Wi-Fi communication for easy accessibility
- Data stored on an included external SD Card for transport flexibility
- Capture of hundreds of 2.5 µs transients
- IP 54 protection
- 7-inch color TFT Display with touch screen
- Includes FREE DataView® software for configuring data retrieval, real-time display, analysis, and report generation
- 3 Year Warranty (upon registration within 30 days)
APPLICATIONS:
- Electrical Maintenance
- Power factor studies
- Load balancing & load start-up measurements
- Overheating of the neutral conductor
- Measurements on photovoltaic installations
- Capacitor bank sizing
- Transformer analysis (derating)
- Failure of switchgear or its components
- Tripping of circuit braker and differentials
- Flicker monitoring & energy efficiency
- Checking power consumption
- Substation metering
- Voltage quality analysis
