Anritsu MS2085A – MS2089A Cable & Antenna Analyzer with Spectrum Analyzer
Anritsu has announced the new MS2085A and MS2089A Cable and Antenna Analyzer with Spectrum Analyzer to replace the S331 & S332, and S361 & S362 range of Sitemasters.
We are GST registered in New Zealand and we charge in New Zealand Dollars. Foreign-based customers please email us or call our Australian or New Zealand numbers below and we can manually process the sale without New Zealand GST. For Australian customers we can also invoice in AUD and you can pay into our Australian bank account to minimise bank fees and complexities.
Â
Please note that you may be assessed for your countries duties and taxes on import as per your local regulations.
Â
- Description
Description
- MS2085A: 5 kHz to 4/6 GHz CAA
- MS2089A: 5 kHz to 4/6 GHz CAA, 9 kHz to 4/6 GHz SPA
The Next Generation Anritsu Site Master represents a fusion of cutting-edge technology, customer-driven innovation, and decades of expertise in test and measurement solutions. It seamlessly integrates cable and antenna analysis with spectrum analysis and monitoring functionalities, offering a comprehensive testing solution for professionals across various industries. From telecommunications and broadcasting to aerospace and defense, the Site Master cable and antenna analyzer with Integrated spectrum analyzer caters to a wide range of applications, including DAS, satellite monitoring, interference analysis, and installation and maintenance tasks.
Cable and Antenna Analyzer Highlights:
The MS2085A is a 5 kHz to 4,6 GHz cable antenna analyzer that weighs less than 7 lbs. with an IK08 10-inch touch screen.
- Built-in PDF/HTML report generation
- Ability to add/edit/import and export a cable list from the instrument
- TDR measurements
- Sweep Speed: 350 µs / data point in fast sweep mode
- Data Points: 10,049
- Spectrum and Interference Analyzer Highlights

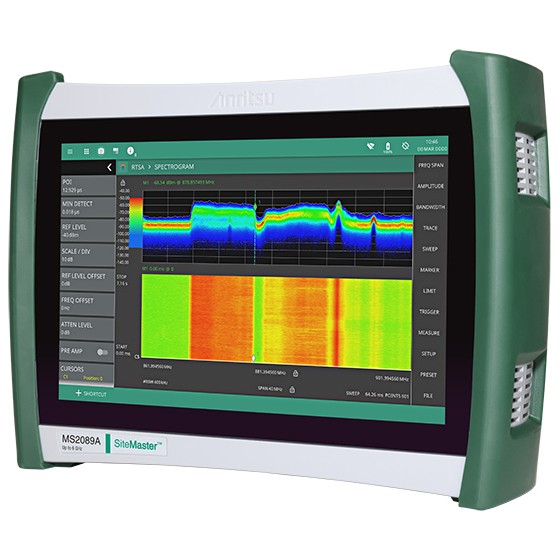

The MS2089A comes in two configurations. The first configuration is a 5 kHz to 4 GHz cable antenna analyzer with a 9 kHz to 4 GHz spectrum analyzer. The second configuration is a 5 kHz to 6 GHz cable antenna analyzer with a 9 kHz to 6 GHz spectrum analyzer. The MS2089A weighs less than 8.5 lbs. and has the same IK08 10-inch touch screen.
- IQ capture/Streaming
- Real-Time Spectrum Analyzer (RTSA)
- LTE FDD/TDD Analyzer
- 5GNR FR1 Analyzer
- Interference Analyze
