BK Precision Model 4088 Series
RF Signal / Waveform Generator 1.5 GHz / 50 MHz
We are GST registered in New Zealand and we charge in New Zealand Dollars. Foreign-based customers please email us or call our Australian or New Zealand numbers below and we can manually process the sale without New Zealand GST. For Australian customers we can also invoice in AUD and you can pay into our Australian bank account to minimise bank fees and complexities.
Â
Please note that you may be assessed for your countries duties and taxes on import as per your local regulations.
Â
- Description
- Documentation
Description

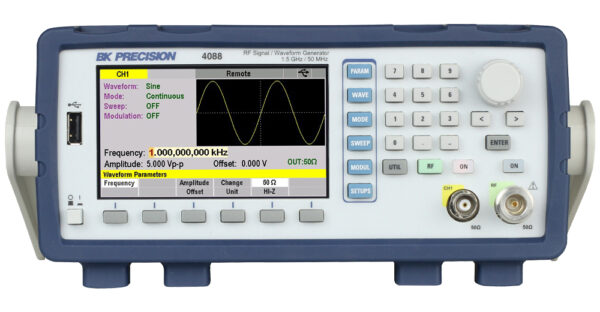

The 4088 Series combines RF signal generation with a fully featured AWG/Function generator to deliver flexibility and performance in a compact, streamlined solution. On the front panel, dedicated channels and output ON/OFF buttons enable individual and simultaneous operation of the RF and AWG/Function signal generators.

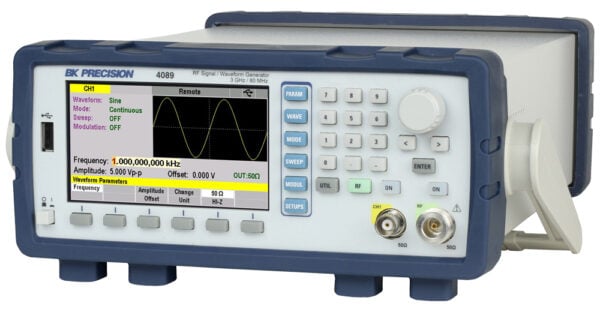

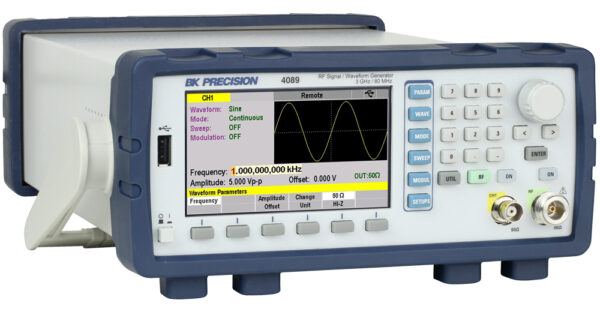

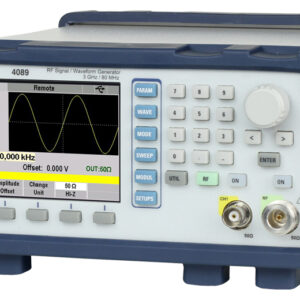

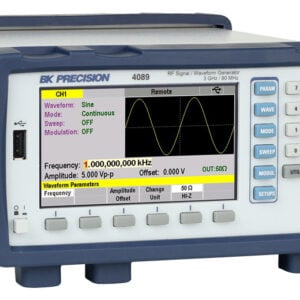

The RF generator covers a wide frequency range from 50 MHz up to 1.5 GHz (4088) or 3 GHz (4089) with excellent frequency stability and low phase noise. The AWG/Function generator utilizes both true point-by-point AWG and DDS based architectures to produce sine, square, triangle, pulse, and user-defined arbitrary waveforms. The function generator frequency ranges from 1 µHz up to 50 MHz (4088) or 80 MHz (4089) and the AWG features 16 bits of resolution, a sampling rate up to 250 MSa/s, and deep waveform memory of 4 million points.
Software is available to create and upload complex waveforms directly to the instruments via standard USBTMC and LAN interfaces. GPIB is also available with model 4089GPIB.
RF Signal
- RF signal frequency up to 1.5 GHz/3 GHz
- Amplitude range from -110 dBm to +13 dBm
- Internal or external AM/FM/PM and pulse modulation functions
- Reverse power protection up to 30 V DC or +25 dBm RF power
AWG/Function Generator
- 16-bit resolution, 250 MSa/s, up to 4 Mpts arbitrary waveform generator
- Generate sine and square waves from 1 μHz up to 80 MHz
- Generate triangle/ramp up to 5 MHz and pulse waveforms up to 10 MHz
- Amplitude up to 10 Vpp into 50 Ω or up to 20 Vpp into open circuit
- Internal or external modulation functions: AM, FM, PM, PWM, BPSK, and FSK
General
- 4.3-inch LCD screen with IPS technology for wider viewing angles
- NISPOM-compliant sanitization to securely restore factory settings

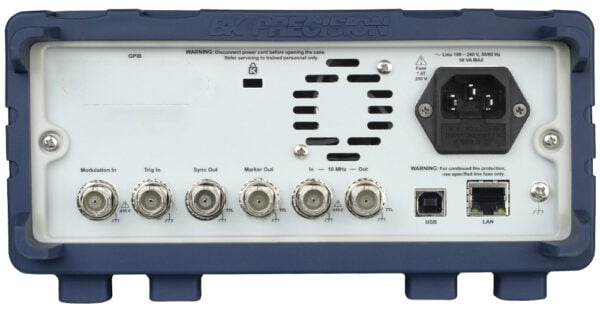

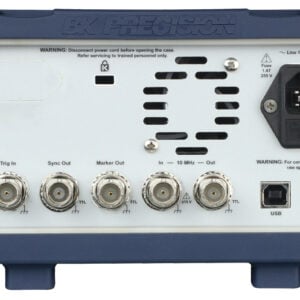

- USB (USBTMC-compliant) and LAN interfaces standard, GPIB optional.
- LabVIEWâ„¢ driver provided
- Supports industry-standard SCPI commands
