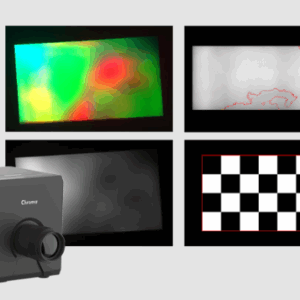

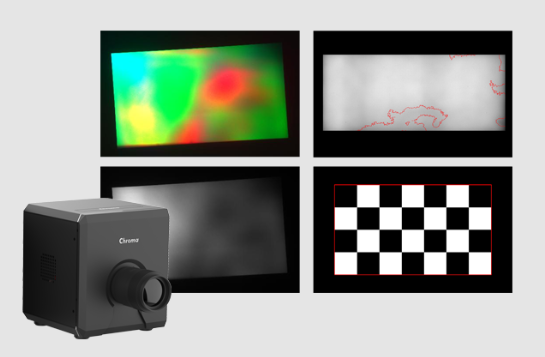

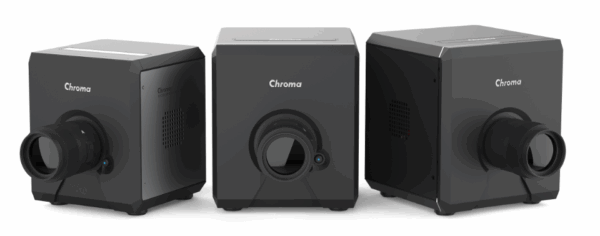

Chroma 2D Color Analyzer 71803 Series
Chroma 2D Color Analyzer 71803 Series is equipped with a high-resolution scientificgrade camera and uses Thermoelectrically Cooled (TEC) CMOS with precision optical components and circuit design to provide accurate, fast and highly repeatable measurements. Combined with the CIEmatching and ND filters, the analyzers produce measurement results that closely correspond with real human perception, suitable for measuring the chromaticity, luminance, contrast, uniformity and correlated color temperature (CCT) of various kinds of displays.
We are GST registered in New Zealand and we charge in New Zealand Dollars. Foreign-based customers please email us or call our Australian or New Zealand numbers below and we can manually process the sale without New Zealand GST. For Australian customers we can also invoice in AUD and you can pay into our Australian bank account to minimise bank fees and complexities.
Â
Please note that you may be assessed for your countries duties and taxes on import as per your local regulations.
Â
- Description
Description
KEY FEATURES

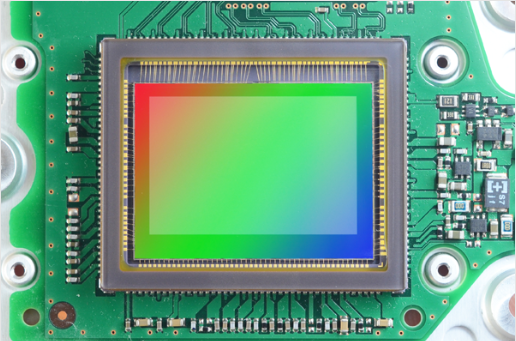

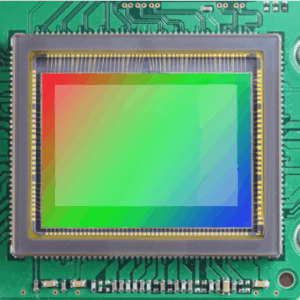

- Equipped with 12-bit high-resolution sensor
- TEC cooling chip for precise temperature control
- Measurement items: Chromaticity/luminance/contrast/ uniformity/correlated color temperature
- Fast and accurate luminance and color measurement
- Automatic and manual definition of regions of interest (ROI)
- Built-in ANSI specification 5/9/13 point measurement
- CoaXpress ultra-high-speed signal interface
- CIE-matched filter that closely approximates human visual perception
- Lens selection according to the application
- Instant image capture according to the set exposure time
- Complete control and analysis software required for optical measurement

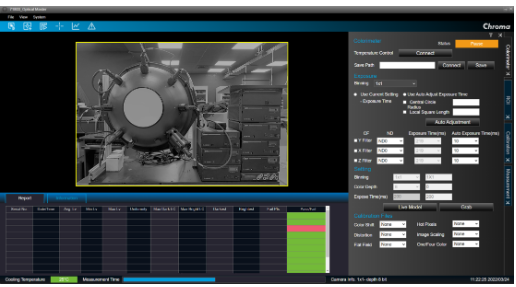

- Graphical operation interface
- Automatic test report output
- Detailed data evaluation and image analysis
- Various photometric measurements for wide range of displays and LEDs
