CU-Ps Primary Current Injection Test Set

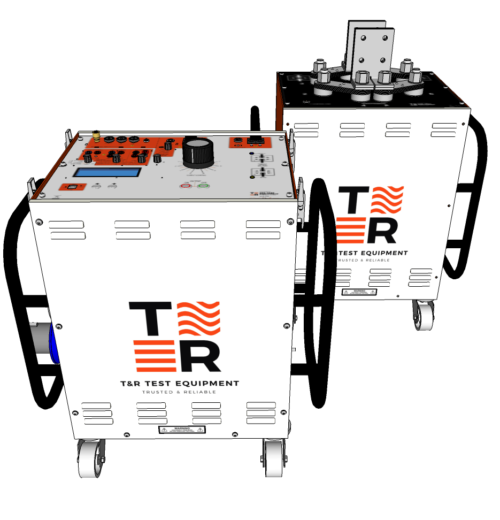

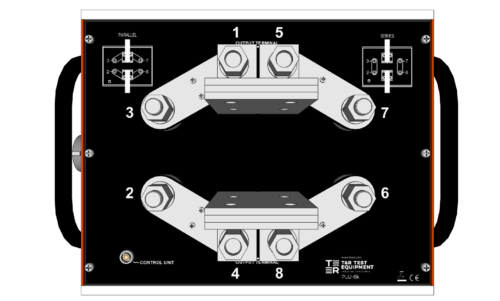

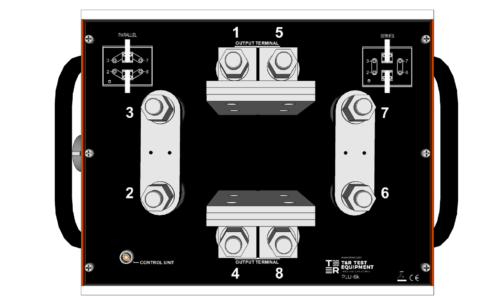

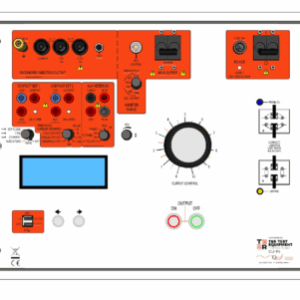

The CU-Ps primary current injection test set is ideally suited to commissioning and maintenance testing where very high currents are required. The system consists of separate control and loading units for maximum flexibility. The control unit contains all control and metering circuitry, and is linked to the loading unit by control and metering cables. The control unit may be used with one of two loading units providing between 5000A or 6000A for 5 minutes or up to 10 or 12kA for short periods. Each loading unit has two outputs which may be connected in series or parallel for maximum flexibility. For example, the PLU-6k may be configured to either give a maximum current of 3000A at 6.6V or 6000A at 3.3V.
Electrotest T & R
We are GST registered in New Zealand and we charge in New Zealand Dollars. Foreign-based customers please email us or call our Australian or New Zealand numbers below and we can manually process the sale without New Zealand GST. For Australian customers we can also invoice in AUD and you can pay into our Australian bank account to minimise bank fees and complexities.
Â
Please note that you may be assessed for your countries duties and taxes on import as per your local regulations.
Â
- Description
Description
- 20kVA 5 minutes output capability (higher overload currents for 1s)
- Multi-function digital timing system
- 5000A and 6000A loading units
- Separate control and loading units
- Secondary injection up to 100A
- Direct reading CT ratio and polarity
- True RMS metering with 1 cycle capture
- Data storage to USB memory key including waveform & harmonics
- USB keyboard interface
