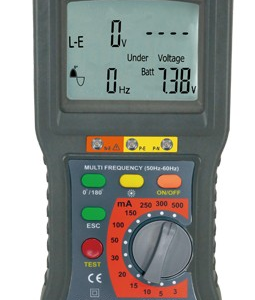

Digital RCD Tester
Digital RCD tester capable of measuring currents from 3mA to 500mA!!
| ● Microprocessor-controlled. ● Extra large LCD(78 × 67mm). ● Very low consumption. ● 50Hz and 60Hz operation. ● Menu-driven. ● Accurate digital readout of disconnection time. ● Over temperature protection. ● Over voltage protection. ● Fuse protection. ● Zero crossing circuitry permit testing at 0° or 180°. ● Auto power off. ● Auto off and off override. ● Wiring polarity indicator. ● Measure voltage between Line and Earth before testing. ●Frequency measurement indication. |
Categories
We are GST registered in New Zealand and we charge in New Zealand Dollars. Foreign-based customers please email us or call our Australian or New Zealand numbers below and we can manually process the sale without New Zealand GST. For Australian customers we can also invoice in AUD and you can pay into our Australian bank account to minimise bank fees and complexities.
Please note that you may be assessed for your countries duties and taxes on import as per your local regulations.
- Description
Description
| Operating voltage (L-E) (50Hz or 60 Hz) |
Version A : 240 Vac Version B : 230 Vac |
|
| Current settings | 3mA, 5mA, 10mA, 15mA, 20mA, 30mA, 50mA, 100mA, 150mA, 250mA, 300mA, 500mA. | |
| Current selection | Rotary switch selector | |
| Phase angle setting | 0° and 180° selectable | |
| Wiring correctness indication | Yes (LEDs) | |
| Trip indicator | Yes (LCD) | |
| Over-temperature protection | Yes | |
| Voltmeter (L-E) | 10Vac ~ 280Vac (50Hz or 60Hz) |
|
| Timer resolution | 1ms (Max. Time=2.999s) | |
| Timer accuracy | ±2ms | |
| Current accuracy | ±5% ±1mA | |
| Voltmeter resolution | 1Vac | |
| Voltmeter accuracy | ±2%±1Vac | |
| Operating temperature | -0°C ~ 40°C | |
| Storage temperature | -10°C ~ 50°C | |
| Dimensions | 221(L) × 110(W) × 57(D)mm | |
| Weight (battery included) |
Approx. 695g | |
| Power source | 1.5V (AA) × 6 (Alkaline battery) |
|
| Safety standard | EN 61010-1 CAT III 300V EN 61326-1 |
|
