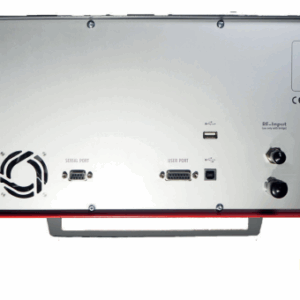

Frankonia EMI TEST RECEIVER – ERC-6
Full compliant with CISPR 16-1-1, Ed.3.1 – 9 kHz to 6 GHz
Key Features
- Frequency-range 9 kHz – 6 GHz
- Traditional EMI-receiver mode according to CISPR 16-1
- Fast, FFT-based (time domain) EMI-receiver mode acc.
- to CISPR 16-1-1, Ed.3.1

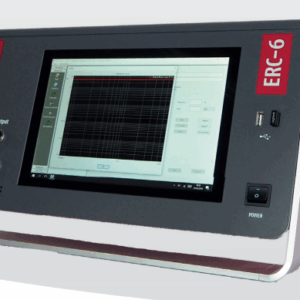

- Integrated touch-PC, with 10“- monitor
- Integrated 20 dB (15 dB> 1 GHz) pre-amplifier
- Full-compliant according to CISPR 16-1
- Peak, Quasi-Peak, Average, RMS, CISPR-Average detectors available (RMS-average optional)
- Description
Description
Although the „ERC-6“ is the less expensive little brother of our flagship „ERX-6“, it is more than worth to have an intensive look on it. With the ERC-6 only properties, that are not required for full-compliance EMI measurements according to CSPR 16-1, have been reduced or mitted. The ERC-6 is therefore a good alternative to the „high-end-devices“ for many users, such as in-house developing departments. The Receiver can either be operated via the integrated touch-PC with 10“ monitor or by external software. The external software enables fully automated measurements including automatic control of antenna mast and turntable. Also the fast, FFT-based (time domain) measuring mode is already included in the ERC-6.
