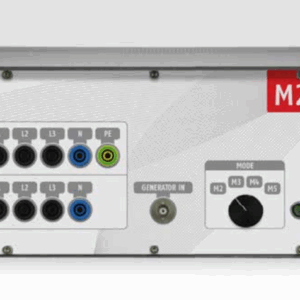

Frankonia Universal Coupling Network M2345/32-16
ACC. TO IEC/EN 61000-4-16
Features
• Switchable coupling network M2, M3, M4, M5 acc. IEC/EN 61000-4-16
• Current rating up to 125A
• For continuous and short term tests up to ± 300 V
• Remote control in connection with MTS-800, PSG-300 and PSG-E300
• May be used as stand-alone device
• EUT 250V AC or DC
We are GST registered in New Zealand and we charge in New Zealand Dollars. Foreign-based customers please email us or call our Australian or New Zealand numbers below and we can manually process the sale without New Zealand GST. For Australian customers we can also invoice in AUD and you can pay into our Australian bank account to minimise bank fees and complexities.
Please note that you may be assessed for your countries duties and taxes on import as per your local regulations.
- Description
Description
As described in IEC/EN 61000-4-16 at the frequency of the electrical power supply (either DC, 16 2/3 Hz, 50 Hz or 60 Hz) the test stimuli are applied as both continuous and short-duration disturbances. Otherwise, over the frequency range 15 Hz to 150 kHz, the test stimuli are applied as continuous disturbances only. The normal duration for short duration disturbances at the electricity supply frequency is one second. The M2345/32-16 is a multifunctional coupling network for test levels up to ±300 V in connection with test generators MTS-800, PSG-300 and PSG-E300. In this case the M2345/32-16 is remote controlled via the application software of the test generators. Otherwise the coupling network may be front panel operated as a stand-alone device. The M2345/32-16 operates as a M2, M3, M4 or M5 coupling network. The selection can be made by a rotary switch. The coupling capacitor is shorted out for the DC tests by a push-button. For automated test you may toggle between AC and DC tests via the USB-port.
