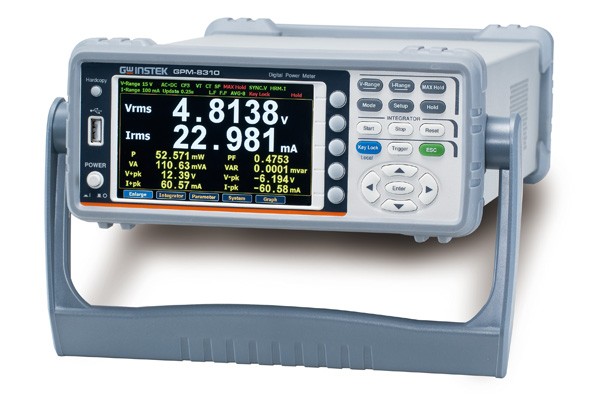

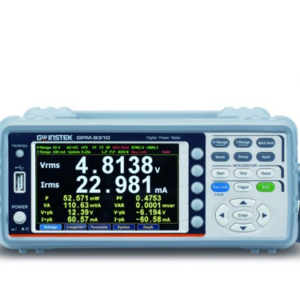

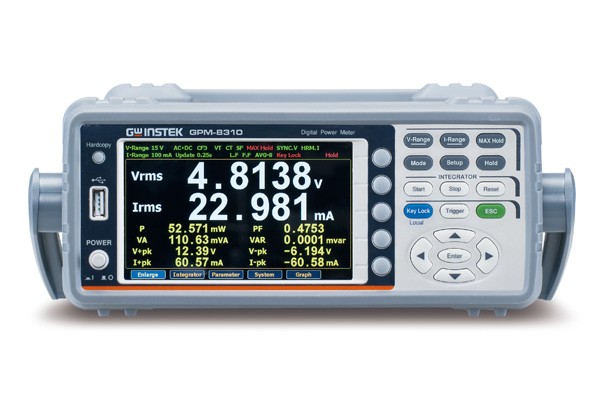

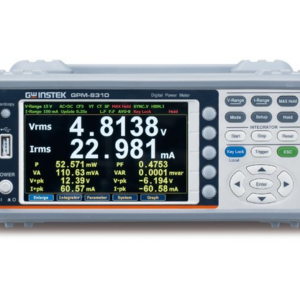

GPM-8310 Digital Power Meter
GW Instek GPM-8310 is a digital power meter for single-phase (1P/2W) AC power measurement.
Features
- 5”TFT LCD
- DC, 0.1Hz ~ 100kHz voltage/current test bandwidth
- Two numerical display modes: General mode: displays 2 main test items + 8 secondary test items ; Simple mode: displays the test values of 4 main test items
- Waveform display: V (voltage), I (current), P (power)
- The current/voltage can be measured to a deformed wave with CF of 3, and the half-range CF can reach 6 or 6A
- 50th order of harmonic measurement and analysis (value and bar graph)
- Integration function supports automatic level-changing
- External current sensor input terminals (EXT1/EXT2)
- Standard interfaces: RS-232C, USB device/ host, LAN, GPIB
- Optional interface: Digital I/O (DA4) (must be installed before leaving the factory)
- Optional accessory: GPM-001
We are GST registered in New Zealand and we charge in New Zealand Dollars. Foreign-based customers please email us or call our Australian or New Zealand numbers below and we can manually process the sale without New Zealand GST. For Australian customers we can also invoice in AUD and you can pay into our Australian bank account to minimise bank fees and complexities.
Please note that you may be assessed for your countries duties and taxes on import as per your local regulations.
- Description
Description
Standard Accessories
- Safety Instruction Sheet x 1, Power cord x 1
- Test lead GTL-209 x 1, Test lead GTL-212 x 1
- CD x 1 (including complete user manual and USB driver)
- DA4 cable GTL-214 (available for GPM-8310 with DA4 only)
Optional
GPM-DA4 DA4 Interface (including cable, GTL-214)
Note : Optional DA4 interface must be installed in factory.
Optional Accessories
- GPM-001 Test Fixture (including GTL-210 x 2, GTL-213 x 1)
- GPM-001 (EU) Test Fixture (including GTL-210 x 2, GTL-213 x 1)
- GTL-209 Test Lead, Banana to Bare-wire, Approx. 1000mm
- GTL-210 Test Lead, Banana to Banana, Approx. 1000mm
- GTL-212 Test Lead, O-Type to Bare-wire, Approx. 1000mm
- GTL-213 Test Lead, O-Type to Banana, Approx. 1000mm
- GTL-214 DA4 Cable, Approx. 1000mm
- GTL-232 RS-232C cable, 9-pin Female to 9-pin, null modem for computer, Approx. 2000mm
- GTL-246 USB Cable, A-B type, Approx. 1200mm
- GTL-248 GPIB Cable, Approx. 2000mm
- GRA-422 Rack Mount Kit, 19” 2U size
