Hioki 3490 ANALOG MΩ HiTESTER
Insulation Resistance Tester
Hioki iInsulation Resistance testers or megohmmeters feature all-in-one designs including built-in rugged cases & test lead storage compartments. The 3490 is a 3-range, 250/500/1000V analog insulation resistance meter with efficient functions and features to help shorten work time associated with field insulation testing.
CAT III 600 V
We are GST registered in New Zealand and we charge in New Zealand Dollars. Foreign-based customers please email us or call our Australian or New Zealand numbers below and we can manually process the sale without New Zealand GST. For Australian customers we can also invoice in AUD and you can pay into our Australian bank account to minimise bank fees and complexities.
Please note that you may be assessed for your countries duties and taxes on import as per your local regulations.
- Description
- Additional information
Description

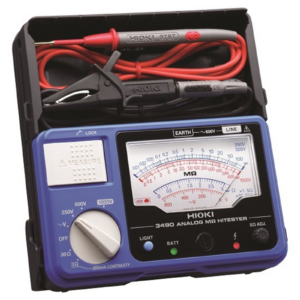

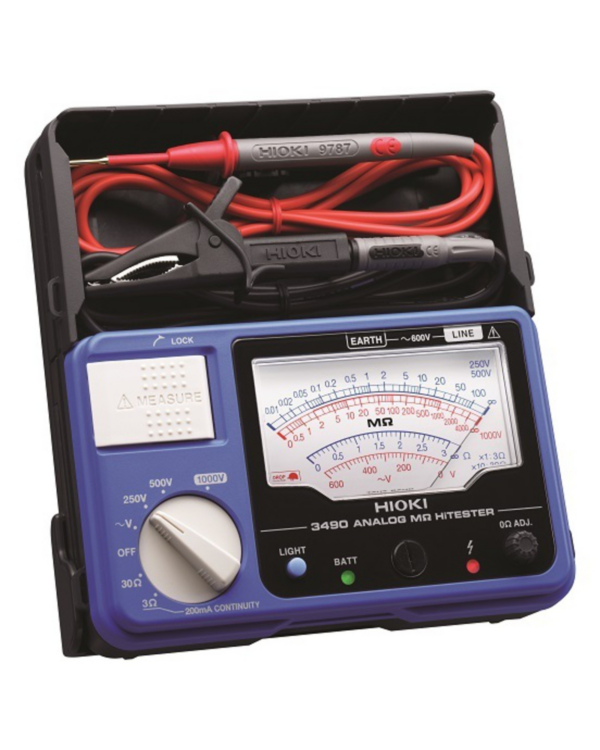

ANALOG MΩ HiTESTER 3490
3-Range, 250 to 1000V Analog Insulation Tester with Continuity Check
Overview
Hioki insulation testers or megohmmeters feature all-in-one designs including built-in rugged cases and test lead storage compartments. The 3490 is a 3-range, 250/500/1000V analog insulation resistance meter with efficient functions and features to help shorten work time associated with field insulation testing.
CAT III 600 V
Main Features:
Functional all in one unit complete with sliding cover and test lead storage
Luminous scale
Test with a simple touch of the switch on the LED-embedded test lead
Extended 35mm test pins
30Ω Range ideal for wiring inspection of general power outlets in accordance with AS/NZS3017
3 Insulation resistance ranges (250V/500V/1000V)
Crystal clear analog scale
Wide 0-50ºC operational temperature range
Continuity testing according to International standards
Battery power constantly monitored
Key Features
- 3-range testing voltage of 250/500 V (insulation resistance testing up to 100 MΩ), and 1000 V (insulation testing up to 4000 MΩ)
- Continuity check at 3 Ω range via 200 mA testing
- Bright LED luminous scale
- Check for live circuits and battery status
Additional information
| Weight | 2 kg |
|---|
