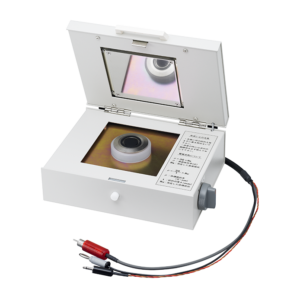

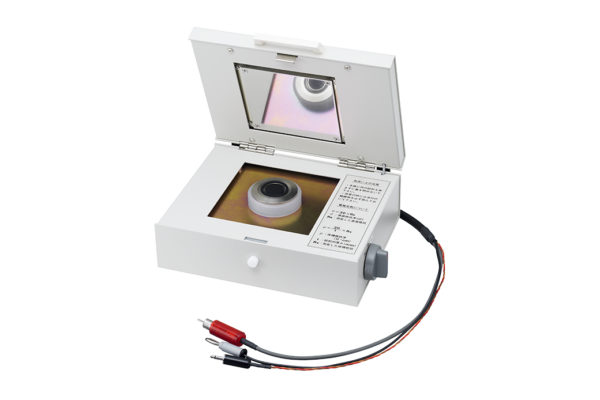

Shop - HIOKI ELECTRODE FOR FLAT SAMPLE SME-8311

Description

Hioki Super Megohmmeters are high insulation resistance meters designed to measure the electrical resistance of insulation materials with high insulating properties. The SME-8311 is used for measuring the insulation resistance of flat samples in conjunction with the SM7000 series.*
*The Z5010 Conversion Adapter is required when using the SM7000 series.

Sample of 40 mm to 100 mm square by up to 8 mm in thickness is measurable. The main electrode dia. is 19.6 mm and inner & outer dia. of ring electrode are 24.1 mm and 28.8 mm respectively. Measurement voltage becomes off while the lid is open to ensure safety.
The fundamental specifications are the same as SME-8310.
