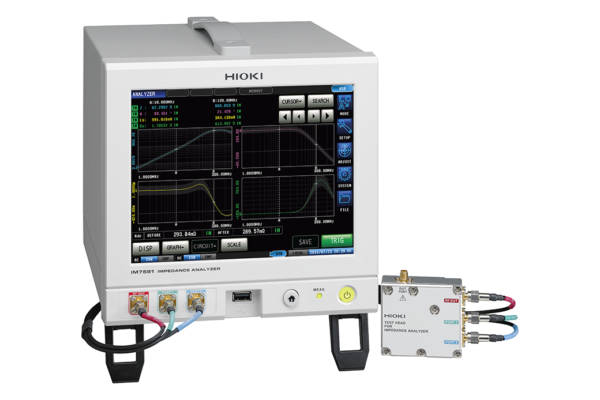

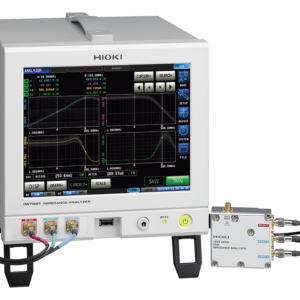

HIOKI IMPEDANCE ANALYZER IM7581
100 kHz to 300 MHz Measurement Frequency Impedance Analyzer with 0.5 ms Test Speed
- Description
- Download Datasheet
Description
Hioki LCR Meters and Impedance Analyzers range from 1 mHz to 3 GHz devices to suit a wide range of applications in the testing of electronic components. The IM7581 offers a top measurement time of 0.5 ms over a 100 kHz to 300 MHz frequency range, making it ideal for high volume production of ferrite chip beads and chip inductors.
LCR Measurement Using the SMD Test Fixture IM9201: Impedance Analyzer IM7580 series
The IM7580 series encompasses five models covering measurement frequencies of 1 MHz to 3 GHz. Used in combination with the Test Fixture IM9201, which can accommodate six SMD sizes, IM7580 series instruments allow you to measure specimens easily and reliably.
