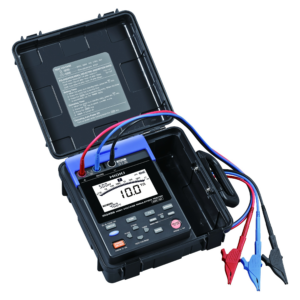

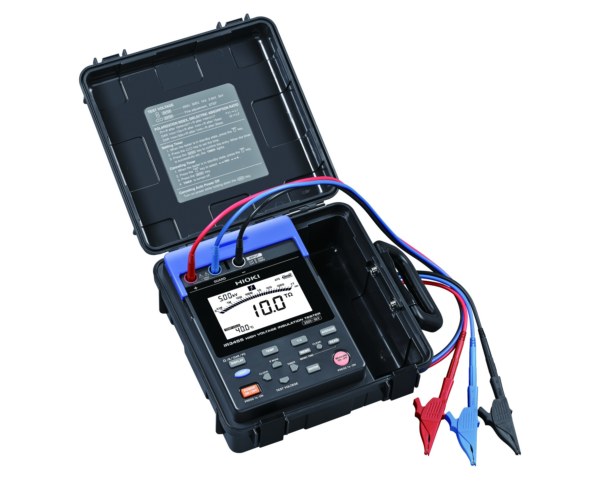

Hioki IR5050 High Voltage Insulation Tester
HIGH VOLTAGE INSULATION TESTER
Maximum 5kV Test Voltage – Up to 10 Teraohm of Insulated Resistance Testing
Hioki insulation resistance testers or megohmmeters feature all-in-one designs including built-in rugged cases and test lead storage compartments. The IR3455 is a 5-range, 250V to 5000V digital insulation resistance tester offering up to 10TΩ of insulated resistance testing. High performance features include bargraph, built-in memory, leak current and voltage testing, and DAR and PI calculation capabilities to help shorten work time associated with field insulation testing.
- Description
Description
HIGH VOLTAGE INSULATION TESTER IR5050, Maximum 5kV Test Voltage – Up to 10 TΩ of Insulation Resistance Testing.
Overview
The IR5050 is a compact, lightweight, high-voltage insulation resistance tester capable of outputting up to 5 kV. Its unique measurement technology enables stable measurements of up to 10 TΩ.
Key Features
- Measure insulation of high-voltage equipment (such as transformers, cables, and motors)
- Wide testing voltage range, up to 5000 V from 250 V DC
- Wide measurement insulation range, up to 10 TΩ
- Automatically calculated and displayed insulation diagnostics (PI, DAR, and DD)
- Data memory functions increase your work efficiency by eliminating human errors from manual reporting.
- Selectable Interface Compatibility: Offers both wireless and USB connectivity options.
- Compact and lightweight, equipped with an IP65-rated carrying case
