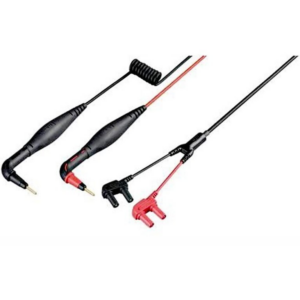

Hioki L2020 Pin Type Lead for BT3554- Battery Testers
Right Angle Pin Lead replacement for Hioki BT3554-xx range of Battery Testers.
We are GST registered in New Zealand and we charge in New Zealand Dollars. Foreign-based customers please email us or call our Australian or New Zealand numbers below and we can manually process the sale without New Zealand GST. For Australian customers we can also invoice in AUD and you can pay into our Australian bank account to minimise bank fees and complexities.
Please note that you may be assessed for your countries duties and taxes on import as per your local regulations.
- Description
Description
Overview
-

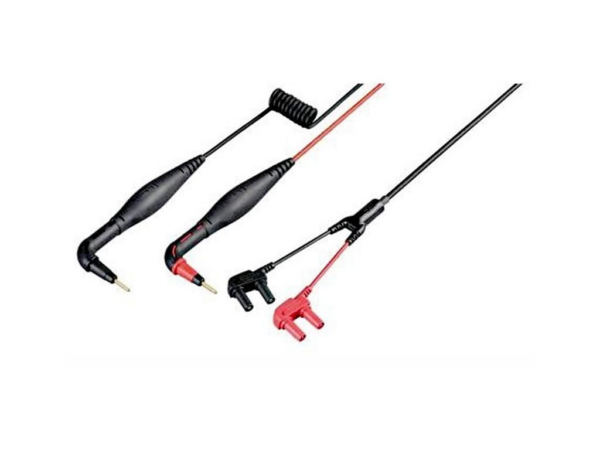

The L2020 is a test lead accessory produced by Hioki, designed to provide improved access in tight spaces, particularly for battery testers/resistance meters.
-
It has an L-shaped tip (“curved” style) which allows the connection of the probe to electrode terminals in locations where straight leads may struggle.
-
It is offered as an optional accessory for certain Hioki equipment (for example the BT3554 battery tester) and can also be bought separately.
Key Features
Here are the standout features of the L2020:
| Feature | Description |
|---|---|
| L-Shaped / Curved Tip Design | The angled tip allows easier access to terminals mounted at odd angles, recessed, or in compact battery packs. |
| Pin-type Probe (4-Terminal Structure) | The specification mentions a “4-terminal structure” which improves measurement reliability in small spaces, ensuring good contact despite cramped geometries. |
| Compatibility with Battery Testers / Resistance Meters | The L2020 is specified for use with models such as the BT3554-10 / BT3554-11 (battery testers) and certain resistance meters. |
| Length and Construction | One spec lists the test cable length as 1.94 metres, which gives decent reach in typical test bench or manufacturing setups. |
| Designed for Improved Usability & Efficiency | The marketing notes say the design “significantly improves ease of use when inspecting batteries installed in …” meaning the L-shape helps reduce measurement time and difficulty. |
