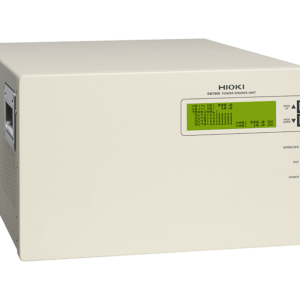

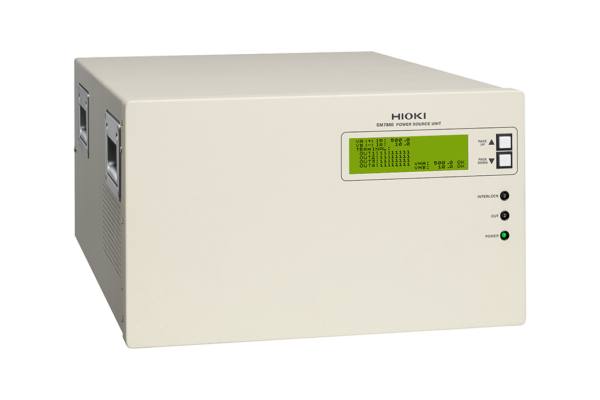

HIOKI POWER SOURCE UNIT SM7860
Power Source Unit Ideal for MLCC Leakage Current Measurement!
- Description
- Download Datasheet
Description
The SM7860 series allows for setting the dual-line output voltage on 8 channels or 16 channels, and enables up to 32-channel of output. The Hioki SM7860-5x/SM7860-6x series is a 32-channel, 500 V/1000 V power source for the Hioki SM7810 Super Megohm Meter, providing positive and negative polarities required for MLCC test lines.
See the brochure for SM7860 Functions & output channel configuration.
Key Features
- Support for multi-channel systems up to 32-channel output
- 8-channels or 16-channels dual-line output voltage setting
- Positive and negative polarities required for the MLCC test line included in a single unit
- Output ON/OFF and current limitation can be performed for each channel
- Support for the discharge of the charge capacitor
- Output voltage of 1 kV is available
- Large current output of 50 mA (*1)/channel allows for reducing the number of backup charges
