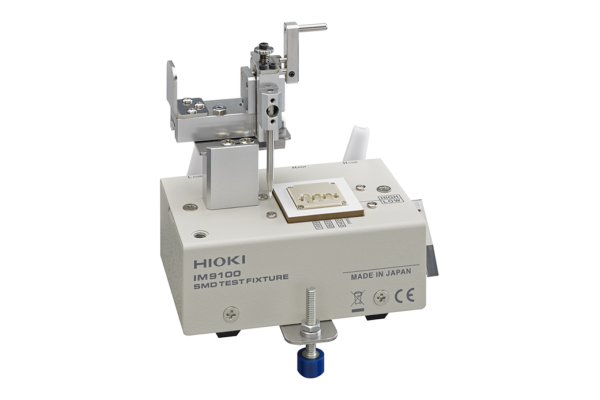

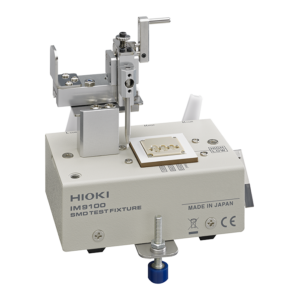

HIOKI SMD TEST FIXTURE IM9100
High-Precision Four-Wire Testing of Ultra-Small Components from 01005 (inch)
- Description
- Download Datasheet
Description
Hioki LCR Meters and Impedance Analyzers range from 1 mHz to 3 GHz devices to suit a wide range of applications in the testing of electronic components. The IM9100 is a 4-wire direct connection test fixture that supports testing of components in various sizes that are designed with electrodes on the bottom.
Key Features
- Direct connection type
- For measuring SMDs with electrodes on the bottom
- DC to 8 MHz measurement frequency
- Measurable sample sizes: Metric (Inch): 0402 (01005), 0603 (0201), 1005 (0402)
