HIOKI WEIGHT ELECTRODE SME-8320
Measure Surface Resistivity and Volume of Challenging Objects Easily!
We are GST registered in New Zealand and we charge in New Zealand Dollars. Foreign-based customers please email us or call our Australian or New Zealand numbers below and we can manually process the sale without New Zealand GST. For Australian customers we can also invoice in AUD and you can pay into our Australian bank account to minimise bank fees and complexities.
Â
Please note that you may be assessed for your countries duties and taxes on import as per your local regulations.
Â
- Description
- Download Datasheet
Description
Hioki Super Megohmmeters are high insulation resistance meters designed to measure the electrical resistance of insulation materials with high insulating properties. The SME-8320 is a plate sample surface resistance measurement electrode consisting of the main electrode, counter electrode, and positioning jig.*
*The Z5010 Conversion Adapter is required when using the SM7000 series.

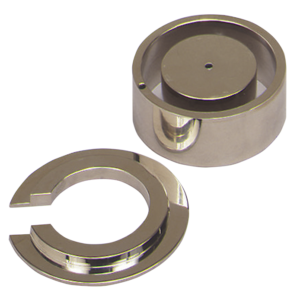

This is an electrode for plate sample for use together with SME-8350 shield box. This electrode enables extremely easy measurement of surface resistivity and volume of sample with coarse surface such as carpets, etc. The main electrode dia. is 50 mm, and the ring electrode inner-dia. and outer-dia. are 70 mm and 80 mm respectively.
