Shop - HV Diagnostix S480A – 4 Terminal Earth Tester

Description

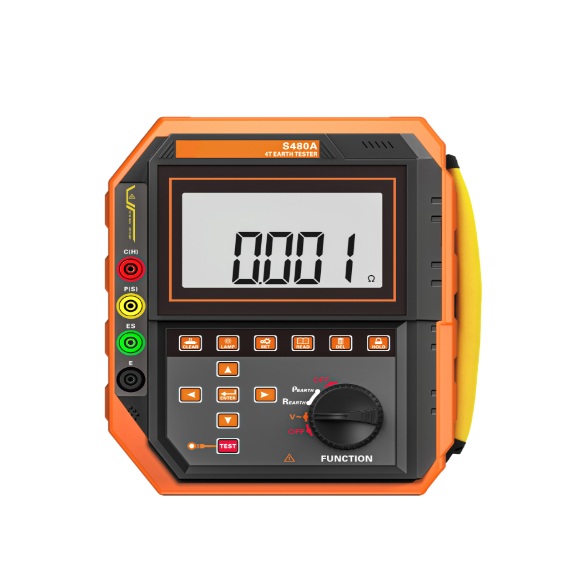

S480A 4 Terminal Earth Tester is a compact handheld earth (ground) test instrument designed to measure earth electrode resistance and soil resistivity. It has several test modes but excels at the 4-terminal method, which eliminates both the contact resistance and the wire resistance. The instrument is also installed with the Fast Fourier Transform (FFT) and Automatic Frequency Control (AFC) technology, making it high in anti-interference capability. These technologies alongside the 4-terminal method, the results obtained are highly accurate.

Soil resistivity measurements are often used for establishing the optimal electrode design and site for a grounding system, or it is also often used in geological or archaeological investigations.
