ISA KAM Primary Current Injection Test System

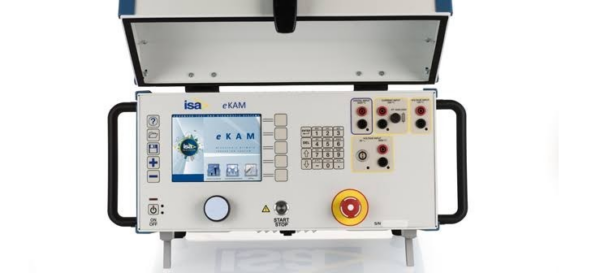

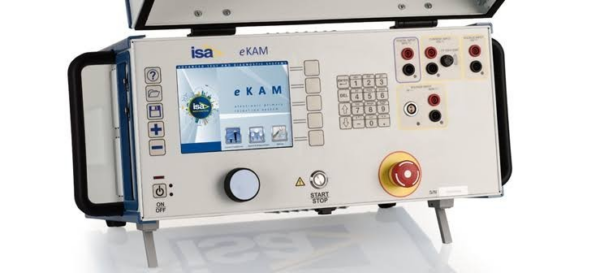

eKAM test system includes two portable units: one control unit with a large graphical display that adjusts the AC voltage output (up to 220 V) and one current unit (up to 2000, 3000, 5000A). BUX 2000 (2000 A) – BUX 3000 (3000 A) – BUX 5000 (5000 A): one or more BUX current unit can be connected to eKAM (not simultaneously), they can be ordered separately when the order is placed or at a later moment.
- Description
Description
Fully Automatic Primary Injection Test System
Key Features:
- CT ratio, burden and polarity test
- Circuit breaker testing
- Two portable units: control and current units
- High current output: up to 2000 A, 3000 A and 5000 A and AC voltage output up to 220 V
- Variable output frequency: 15÷500 Hz
- Large graphic display
- Advanced Test & Data Management Software for test set control, results storage and analysis.
- Step & Touch plus ground resistance tests with STLG option, according to EN50522 and EN61936-1 standards •
- Line impedance test with STLG option
- Reduced timing test • USB interface and Ethernet interface for PC connection
- IEC 61850-9-2 sample values protocol interface
- Compact and lightweight: Control unit: 17 kg Current unit: 16/20 kg according to the model.
