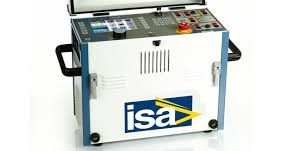

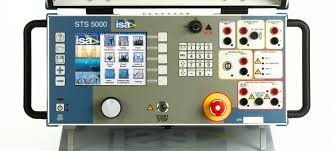

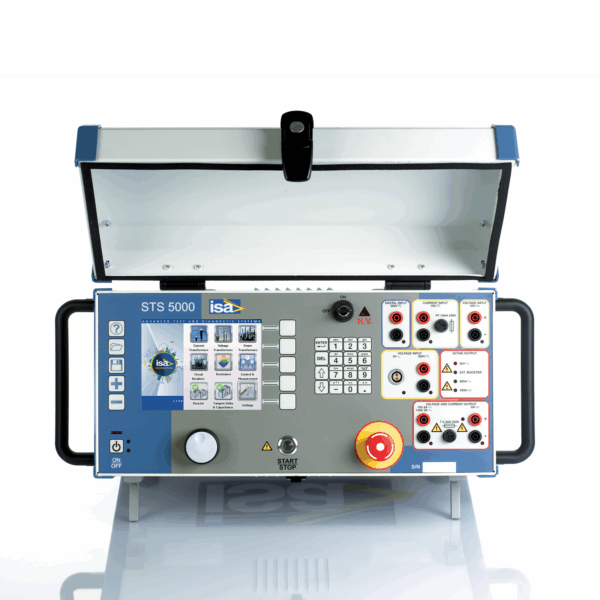

ISA STS 5000 Sub Station Commissioning System
Multifunction substation maintenance & commissioning test system for current, voltage and power transformers.
Capacitance/TanDelta diagnostic system with the optional module TD 5000.
- Description
Description
Fully AutomaticÂ
• Primary injection testing capabilities: up to 800 A or up to 3000 A, with the optional module BUX 3000
• Variable output frequency: 15 – 500 Hz
• Power dissipation factor test with the optional module TD 5000 (voltage up to 12 kV)
• 2000 V AC high-pot test
• Large graphic display
• Advanced Test & Data Management Software for test set control, results storage and analysis
• USB interface and Ethernet interface for PC connection
• Compact and lightweight
• Patent pending technology for capacitance and Tan Delta measurement
