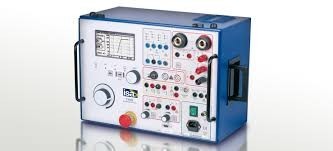

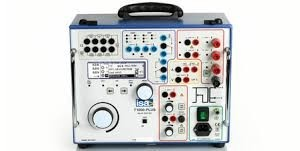

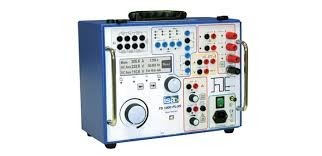

ISA T1000 Secondary Injection Relay Test Set
The instrument contains three separate generators: . Main generator, that generates either AC current, AC voltage; DC voltage; . Auxiliary AC voltage generator, that generates an independent, phase shiftable AC voltage; . Auxiliary DC voltage generator, that generates the DC voltage that powers the relay under test.
All outputs are adjustable and metered at the same time on the large, graphic LCD display. T 1000 PLUS can operate without connection to a PC. With the multi-purpose knob and the LCD display it is possible to enter the MENU mode, that allows to set many functions, that make T 1000 PLUS a very powerful testing device, with manual and semi-automatic testing capabilities, and with the possibility to transfer test results to a PC via USB or RS232 interface. These results can be recorded, displayed and analysed by the powerful TDMS software, that operates with all WINDOWS versions, starting from WINDOWS 98 included.
We are GST registered in New Zealand and we charge in New Zealand Dollars. Foreign-based customers please email us or call our Australian or New Zealand numbers below and we can manually process the sale without New Zealand GST. For Australian customers we can also invoice in AUD and you can pay into our Australian bank account to minimise bank fees and complexities.
Please note that you may be assessed for your countries duties and taxes on import as per your local regulations.
- Description
Description
T1000 PLUS Specification Main generator has three outputs:
- AC current outputs
- AC voltage outputs
- DC voltage outputs
Other features of main outputs
- Zero crossing control
- Main AC outputs are generated and stopped as the output waveform crosses zero. .
- High resolution adjustment control
- Overload alarm message
- Thermal protection
- Possibility to reduce the output power to one fifth for low burdens.
