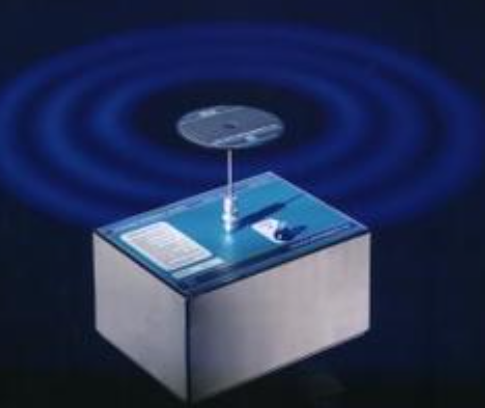

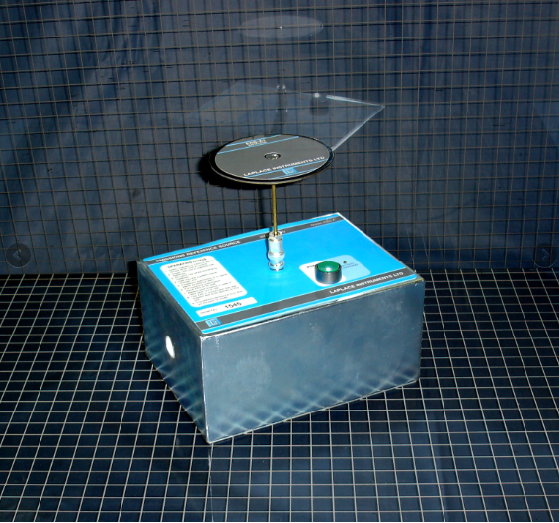

Laplace EMISSIONS REFERENCE SOURCE
Reference Sources
Reference sources are compact signal sources that facilitate the calibration of EMC test equipment.
The Radiated source (ERS) will check both the site and the measurement equipment. This is particularly important as the greatest source of measurement uncertainty is invariably the site.
- Description
Description
Key points:
- RF output: From detachable antenna.
- RF signal: Continuous, steady state,
- narrow band, harmonic series.
- Amplitude stability: 0.5dB (short term)
- Drift over time: 1dB/annum
- Harmonic spacing 2MHz
- Frequency range: 30MHz—1GHz
- Frequency stability: 80ppm
- RF level at 3m 50—73 dBuV/m
- Power: Internal battery (LiMH)
- Running time: 6 hours
Related Products
GDB-03 Oscilloscope Education And Training Kit Oscilloscope Education And Training Kit
Features
Application for GDS-3000 /GDS-2000A/MSO-2000A/GDS-2000E demo and oscilloscope training
5Vdc Power Input (Support USB...
GPM-8310 Digital Power Meter
GW Instek GPM-8310 is a digital power meter for single-phase (1P/2W) AC...

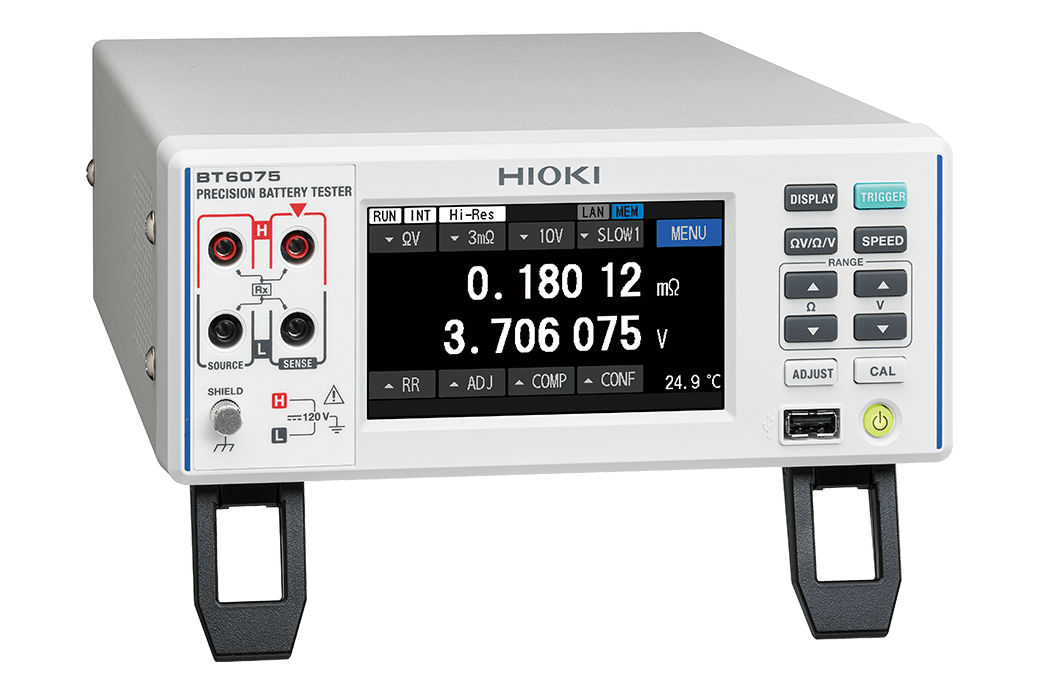

Hioki BT6065, BT6075 PRECISION BATTERY TESTER
