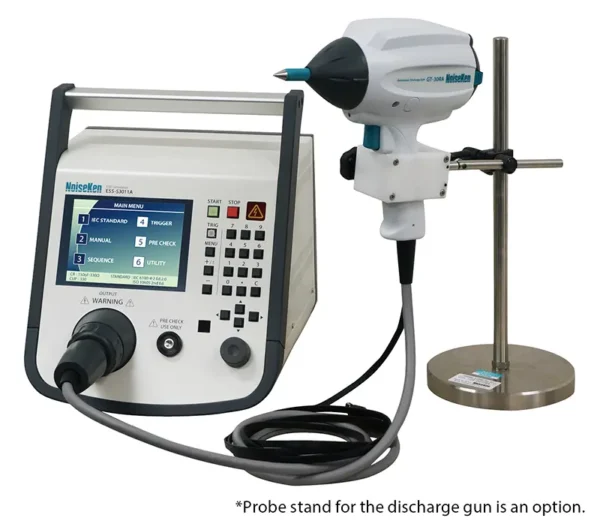

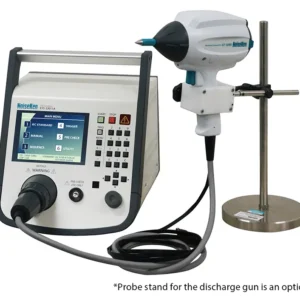

NoiseKen-Electrostatic Discharge Simulator (ESS series) ESD Simulator ESS-S3011A & GT-30RA
We are GST registered in New Zealand and we charge in New Zealand Dollars. Foreign-based customers please email us or call our Australian or New Zealand numbers below and we can manually process the sale without New Zealand GST. For Australian customers we can also invoice in AUD and you can pay into our Australian bank account to minimise bank fees and complexities.
Please note that you may be assessed for your countries duties and taxes on import as per your local regulations.
- Description
Description
Free you from the hassle of testing by the pre-check function and the weight reduction of the discharge gun
EMC test equipment to evaluate the resistibility of electronic equipment when energy charged on a human body or object is discharged to the electronic equipment.
This can be available for evaluating malfunctions or functions declines of electronic equipment against the ESD. Programmable simulator to ease some complicated tests. The output voltage is up to 30kV allowing to perform testing compliant to IEC61000-4-2 & ISO 10605 Standards.
Features
● 3 pre-checking function to ensure more reliable testing
● CR constant indicator to prevent incorrect unit attachment
● One-touch exchange of gun head and CR unit realized
● Ten-key & Rotary knob to ease the setting.
● Infra-red Remote Controller allowing setting remotely from the generator (Standard attached)
● “Discharge Detecting Function to realize the air-discharge confirmation
● Lightest discharge gun in the market to lighten the continuous operation (Excluding the cable and connector)
●White LED Irradiator” to facilitate the visualization of the discharging areas
● Control Software” to enable the test result reporting and control with PC
* The software is available for a free of charge download from our web-site. (The connection cable is necessary in addition).
* C (Capacitor) and R (Resistor) for the discharge gun is one-body unit.
* ISO 10605 compliant test can be realized with the optional parts in addition
