Pasco • EM-8609 Transformer Coil (200 turn)
EM-8609 offers reliable performance with precision-built quality, delivering stable and efficient operation for a wide range of power and electronic applications.
We are GST registered in New Zealand and we charge in New Zealand Dollars. Foreign-based customers please email us or call our Australian or New Zealand numbers below and we can manually process the sale without New Zealand GST. For Australian customers we can also invoice in AUD and you can pay into our Australian bank account to minimise bank fees and complexities.
Please note that you may be assessed for your countries duties and taxes on import as per your local regulations.
- Description
- Product Specifications
Description

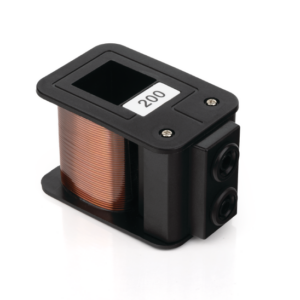

This high-quality coil (200 turn) is labeled with the number of turns, the direction of the winding, and the maximum current. This coil is used in the Transformer Coils Set (EM-8615).
Applications
- Electromagnetism
- Induction
- Transformers
What’s Included
- 1x 200-turn coil
| Number of Turns in Coil | 200 |
| Maximum Current | 2 A |
| Cross-section opening for core | 21 mm x 21 mm |
| Height of coil case | 44 mm |
| Coil length | 4 cm |
