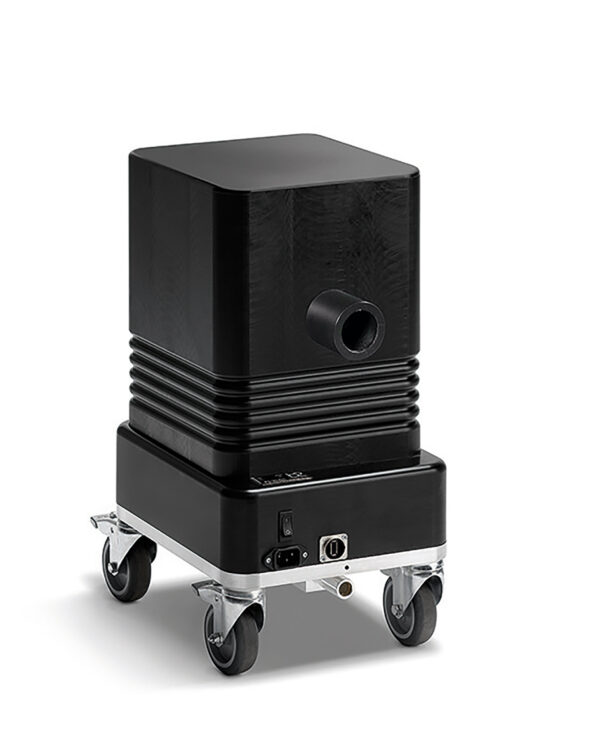

PD30-E Partial Discharge diagnostics system
We are GST registered in New Zealand and we charge in New Zealand Dollars. Foreign-based customers please email us or call our Australian or New Zealand numbers below and we can manually process the sale without New Zealand GST. For Australian customers we can also invoice in AUD and you can pay into our Australian bank account to minimise bank fees and complexities.
Please note that you may be assessed for your countries duties and taxes on import as per your local regulations.
- Description
Description
Performance: PD30-E combines in a single device HV filter together with coupling capacitor, making it compact and highly efficient at the same time.
Application: Suitable for testing XLPE, PE, EPR and PILC cables up to 100 km.
PD localization: Precise localization of PD faults in cables with the accuracy 1% and resolution 0.1 pC per 0.1 m.
Complete system: In combination with the HVA28TD device (not in scope of supply), PD30-E creates a full-featured and full-value system for 30 kV output voltage scope.
Compliance: PD30-E device is in compliance with the guide IEEE 400.3 and the standard IEC 60270 with its local derivations.
| Operating voltage (sine wave) | max. 34 kVpeak, 24 kVrms |
|---|---|
| Upgrade Capacitance CC |
1.8 nF |
| Velocity range (v/2) | 10 – 150 m/µs |
| PD background level | < 10 pC |
| Sample rate | 250 MS/s |
| Upgrade Weight |
19 kg |
