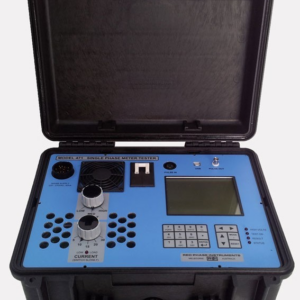

Red Phase 471 Single Phase Meter Tester
The Model 471 is a fully digital kWh meter tester, with an in built 30 Amp phantom load ability. A digital signal processor performs all of the energy calculations and measurements and a separate processor board facilitates parameter entry and results display.
We are GST registered in New Zealand and we charge in New Zealand Dollars. Foreign-based customers please email us or call our Australian or New Zealand numbers below and we can manually process the sale without New Zealand GST. For Australian customers we can also invoice in AUD and you can pay into our Australian bank account to minimise bank fees and complexities.
Â
Please note that you may be assessed for your countries duties and taxes on import as per your local regulations.
Â
- Description
Description
SUPPLY VOLTAGE RANGE: 220V to 270V, 50Hz/ 60Hz
CURRENT INJECTION: 30A, 20A, 15A, 10A, 5A, 2A, 1.5A, 1A, 0.5A
The currents can be injected at Power Factors of: 1.0, 0.86 lag or 0.5 lag, selectable on the LCD screen.
Energy measurement accuracy is 0.05% over the following ranges:
220V-270V. 0.5A-30A. 1.0PF to 0.86PF lag. 48Hz to 52Hz, or 58Hz to 62Hz.
Energy measurement accuracy is 0.075% over the above ranges at 0.86PF lag to 0.5PF lag.
The voltage and current measurement as shown on the LCD screen is accurate to 1%.
The frequency is accurate to 0.1Hz
Phase angle to 1 deg.
Unit size is 400mm wide X 340mm deep X 200mm high, and weight 10kg.
Recommended operating temperature range is 0deg C to 40deg C.
Up to 500 Meter test records can be stored.
Records can be downloaded to a PC using the USB port on the front panel.
