Rental: PV Checks Pro Plus Kit
Commissioning tester for PV system up to 1500V / 40A. Pricing is per day and excludes GST, courier and insurance.
We are GST registered in New Zealand and we charge in New Zealand Dollars. Foreign-based customers please email us or call our Australian or New Zealand numbers below and we can manually process the sale without New Zealand GST. For Australian customers we can also invoice in AUD and you can pay into our Australian bank account to minimise bank fees and complexities.
Â
Please note that you may be assessed for your countries duties and taxes on import as per your local regulations.
Â
- Description
- Download Datasheet
Description

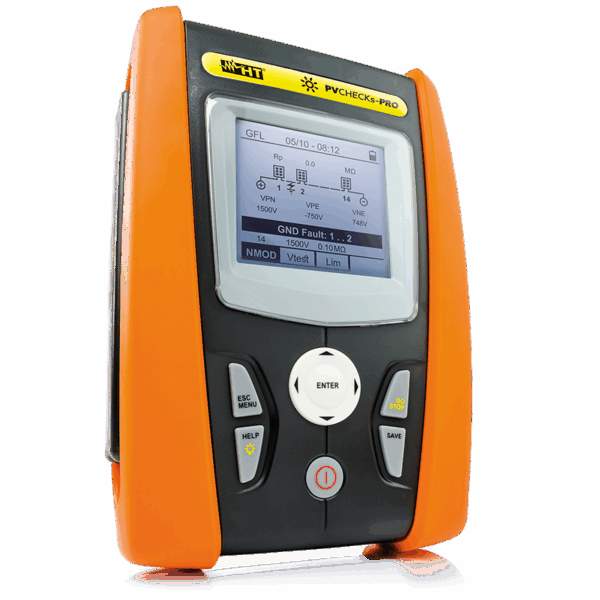

PVCHECKs-PRO
Multifunction commissioning tester up to 1500V / 40A capable of taking the following measurements:
• Insulation measurement on PV modules/strings/fields up to 1500VDC (with PI and DAR calculation)
• Open circuit voltage Voc up to 1500V in accordance with IEC/EN62446
• Short circuit current Isc up to 40A in accordance with IEC/EN62446
• Continuity of protective conductors with 200mA
• Polarity
• GFL function for fault finding on strings and PV modules
• Tests on single-facial and bi-facial modules
PVCHECKs-PRO is a commissioning tester designed to take all safety measurements and verifications of PV installations in accordance with IEC/EN62446. By a single GO-key stroke PVCHECKs-PRO performs all commissioning tests. Thanks to the seamless mode, PVCHECKs-PRO is able to test in sequence all strings of a combiner box by a single GO-key stroke. Finally, the GFL – Ground Fault Locator detects the precise position of the lack of insulation, speeding the troubleshooting.
