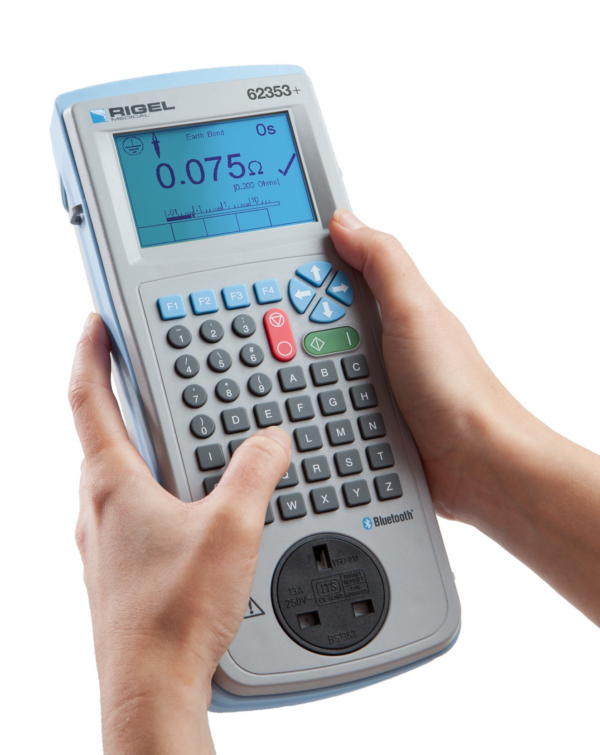

Rigel 62353+ Electrical Safety Analyser
The Rigel 62353+ is the smallest and most flexible electrical safety analyser on the market with battery powered earth/ground bond and insulation testing.
The Rigel 62353+ electrical safety analyzer offers an accurate and fast solution for testing in accordance with the IEC 62353 safety standard.
We are GST registered in New Zealand and we charge in New Zealand Dollars. Foreign-based customers please email us or call our Australian or New Zealand numbers below and we can manually process the sale without New Zealand GST. For Australian customers we can also invoice in AUD and you can pay into our Australian bank account to minimise bank fees and complexities.
Â
Please note that you may be assessed for your countries duties and taxes on import as per your local regulations.
Â
- Description
Description
Offering a range of tests without the need for mains power, the 62353+ is capable of conducting battery-powered insulation and earth/ground bond testing. This offers complete freedom to move around in often crowded rooms during the installation process, eliminating the inconvenience of trailing mains cables.
The 62353+ has added two new insulation resistance tests (50V DC and 100V DC) to complement the 250V DC and 500V DC insulation tests that were present in its predecessor, the Rigel 62353. These new tests conform to growing manufacturer’s test requirements for increasingly popular equipment running on 24V DC and 48V DC, such as operating tables, lights and mobile X-rays.
Possible Applications for the Rigel 62353+
Routine testing of medical electrical equipment
Service tool for performance testing
Asset management
Fast and efficient testing of IEC leads
Bond testing on (medical) installations and non-medical equipment
