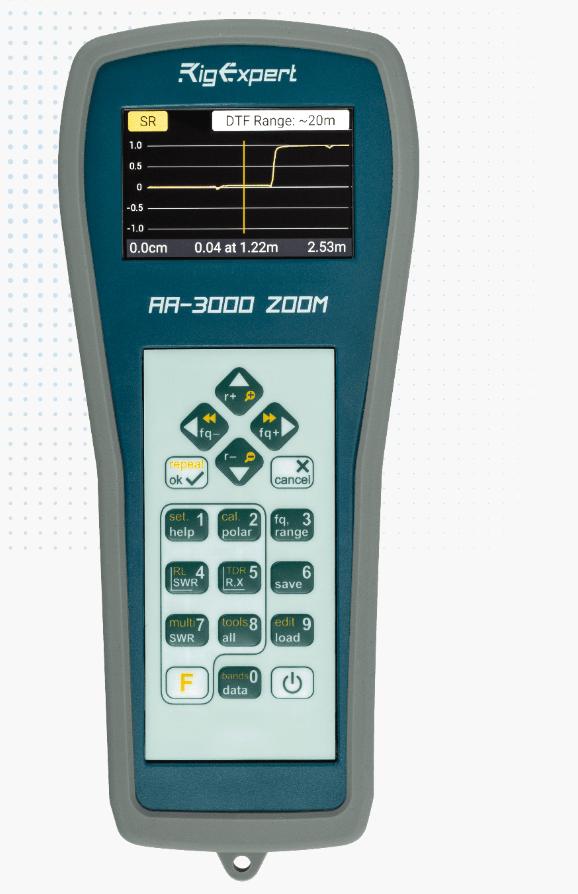

RigExpert AA-3000 3 GHz cable analyser
The flagship Antenna and Cable analyzer with a range from 0.1 to 3000 MHz and a Big Blanview® ZOOM display.
- Stay connected from Earth to space.
- Perfect for amateur, professional, and commercial radio.
- Check and adjust antennas quickly.
- Measure cable length and velocity factor.
- Set up 1/4-λ, 1/2-λ stubs.
- Find cable faults in a snap.
- Measure parameters of other RF elements.
- Enjoy the Big sunlight-readable Blanview® display.
- Trust the factory calibration.
- Navigate the multilingual intuitive interface.
Get help at the push of a button with the built-in Helper.
Store OSL calibration data for future use.

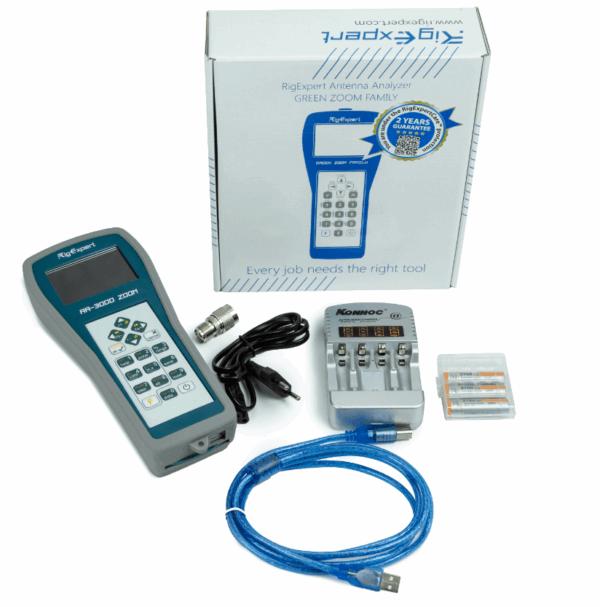

Silicone case, battery charger, rechargeable batteries, USB cable, N to UHF adapter in the box.
See review:
We are GST registered in New Zealand and we charge in New Zealand Dollars. Foreign-based customers please email us or call our Australian or New Zealand numbers below and we can manually process the sale without New Zealand GST. For Australian customers we can also invoice in AUD and you can pay into our Australian bank account to minimise bank fees and complexities.
Please note that you may be assessed for your countries duties and taxes on import as per your local regulations.
- Description
Description
Frequency range: 0.1 to 3000 MHz
Frequency entry: 1 kHz resolution
Measurement for 25, 50, 75, 100, 150, 200, 300, 450 and 600-Ohm systems
SWR measurement range: 1 to 100 in numerical modes, 1 to 10 in chart modes
R and X range: 0…2000, -2000…2000
Display modes: Cable tools (stub tuner, length & velocity factor, cable loss and characteristic impedance measurement, LC meter, Multé), Optional open-short-load calibration, R, X chart, Return loss chart, Smith chart, SWR at single or multiple frequencies, SWR chart, SWR, return loss, R, X, Z, L, C at single frequency, TDR chart (Time Domain Reflectometer), User OSL: 10 profiles available
Optional open-short-load calibration in SWR, R, X, or Smith/polar chart graph modes.
RF output:
– Connector type: N
– Output signal shape: square, 0.1 to 200 MHz. For higher frequencies, harmonics of the main signal are used.
– Output power: -10 dBm (at 50 Ohm load)
Power:
– Three 1.2V, 1800…3000 mAh, Ni-MH batteries, type AA
– Max. 5 hours of continuous measurement, max. 2 days in standby mode when fully charged batteries are used
– When the analyzer is connected to a PC or a DC adapter with a USB socket, it takes power from these sources
Interface:
– 800*480 color BlanView display
– 6×3 keys on the water-proof keypad
– Multilingual menus and help screens ( English / German / French /Spanish / Portuguese / Italian / Japanese / Ukrainian / Russian)
– USB connection to a personal computer
– Bluetooth v. 4.2 (Single-mode, Class B)
Accessories inside the box: Soft case, battery charger, rechargeable batteries, USB cable, N to UHF adapter
Dimensions: 23x10x5.5 cm (9x4x2”)
Operating temperature: 0…40 °C (32…104 °F)
Weight: 420g (15.6 oz)
Warranty: 2 years RigExpert Care
Frequently Asked Questions
The RigExpert AA-3000 is a versatile antenna and cable analyser designed to measure a wide range of RF parameters from 0.1 MHz to 3 GHz. It can be used to check SWR, return loss, impedance, cable loss, cable length, velocity factor, and more.
It also includes Time Domain Reflectometry (TDR) functionality, making it useful for locating cable faults and diagnosing feedline issues. This makes it suitable for amateur radio, commercial communications, WiFi systems, and other RF applications.
The main difference is the frequency range. While the AA-2000 operates up to 2 GHz, the AA-3000 extends coverage to 3 GHz. This additional range is particularly useful for higher-frequency applications such as 2.4 GHz WiFi, LTE networks, ISM band devices, and other microwave-frequency systems.
If you regularly work with frequencies above 2 GHz, the AA-3000 provides greater flexibility and future-proofing.
Yes. The AA-3000 supports both Bluetooth 4.2 and USB connectivity, allowing it to connect to compatible RigExpert software and mobile applications. These tools make it easier to view measurement data, generate reports, save results, and analyse antenna or cable performance on a larger screen.
Yes. The AA-3000 is factory-calibrated and ready to use straight out of the box. It also supports optional Open-Short-Load (OSL) calibration, allowing users to perform additional calibration when required for greater measurement accuracy. Calibration data can be stored for future use, helping maintain consistent results across different projects and testing environments.
The RigExpert AA-3000 includes a 2-year RigExpert Care warranty, providing added confidence in the reliability of your investment. As part of our range of professional electrical testing equipment, this analyser is built to deliver accurate performance in demanding environments.
If you have any questions about warranty coverage, specifications, or suitability for your application, please contact us and our team will be happy to assist.
