RigExpert Stick 230
Customers outside of New Zealand, such as Australia and Pacific Islands, to avoid paying GST, please call our Australian or New Zealand numbers and we will arrange the sale.
AUS:+61 2 913 96 981 NZ: +64 9 448 2600

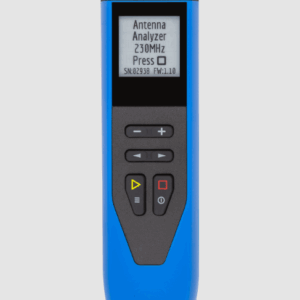

The Stick 230 from RigExperts is a handy tool for the RF engineer.
Checking and adjusting antennas
Measurement of all main parameters of cables, feedlines, filters, and other
High contrast E Ink display
16-hour runtime, one charge
Bluetooth
Compact and lightweight
Splash and dustproof case
Using both in the home and in the field
We are GST registered in New Zealand and we charge in New Zealand Dollars. Foreign-based customers please email us or call our Australian or New Zealand numbers below and we can manually process the sale without New Zealand GST. For Australian customers we can also invoice in AUD and you can pay into our Australian bank account to minimise bank fees and complexities.
Please note that you may be assessed for your countries duties and taxes on import as per your local regulations.
- Description
Description
- Frequency range – 0.1 to 230 MHz
- Frequency entry – 1 kHz
- Measurement for systems – 12.5, 25, 28, 37, 50, 75, 100, 150, 200, 300, 450, 600 Ohm
- SWR measurement range – 1 to 10 in chart modes, 1 to 100 in numerical modes
- R and X range – 0… 10000, -10000… 10000
- Display modes
- HAM (a quick check of single band antenna)
- Multé (a quick check of multiband antennas)
- OSL calibration mode
- SWR chart, 100 points
- SWR, Return loss, R, X, Z, L, C, magnitude and phase angle at one frequency
- RF output – Connector type: UHF (SO-239)
- Output power: -10 dBm (at a load of 50 ohms)
- Output signal shape: square
- Power – One lithium-ion battery 3.7 V type 18650, When the analyzer is connected to a PC or a DC adapter with USB socket, it takes power from these sources
- Сharge time: 3 hours when using a charger
- Interface – 2 × 3 keys on the waterproof keyboard, High contrast E Ink display, 200 × 200, Menus and help screens in English (by default), Japanese v.4.2 BLE Single Mode, Class B
- Operating temperature – -15° … 40 ° C (5 … 104 ° F)
- Dimensions – 185 x 40 x 33 mm (7.3 x 1.6 x 1.3 inches)
- Weight – 185 grams (6.5 Oz) with battery

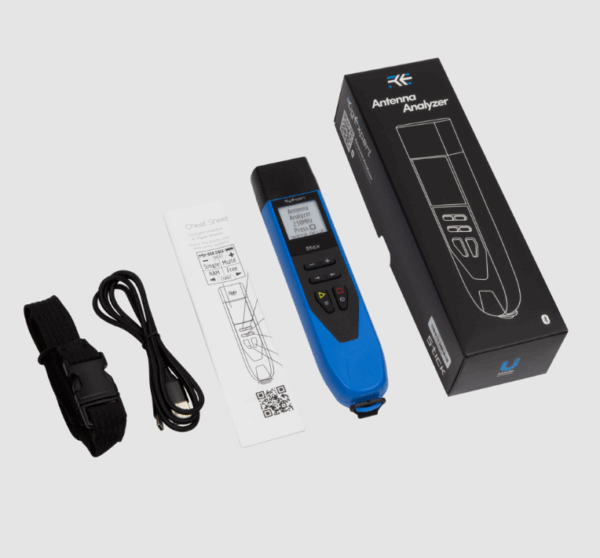

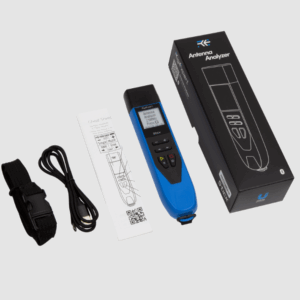

- Accessories inside the box: -Lanyard, Quick start guide, USB cable,
- GTIN-13 – 4820185420358
- Note: Specifications are subject to change without notice
- Мade in Ukraine
Related Products
Frequently Asked Questions
The RigExpert Stick 230 is a compact, entry-level antenna and cable analyser designed for testing and tuning RF systems up to 230 MHz. It’s ideal for HF and VHF applications, helping users quickly check antenna performance, identify issues, and optimise system efficiency both in the workshop and out in the field.
The main difference is frequency coverage. The Stick 230 operates up to 230 MHz, making it well suited to HF and VHF work, while the Stick 500 extends to 500 MHz and includes additional UHF capability.
If your work is focused on HF and VHF bands, the Stick 230 provides excellent value without paying for extra frequency range you may not need. It’s also a practical tool for technicians involved in RF field services.
The Stick 230 can measure a range of key antenna and cable parameters, including SWR, return loss, impedance, and cable loss. These measurements help users evaluate antenna performance, diagnose faults, and make adjustments to achieve better signal quality and system reliability.
Yes. The Stick 230 is a popular choice for amateur radio operators because it covers all major HF bands as well as the 6-metre and 2-metre VHF bands. Its portability and ease of use make it particularly useful for hobbyists, clubs, and those undertaking RF training or learning antenna tuning techniques.
Yes. The Stick 230 supports connectivity options that allow users to work with companion software and mobile applications for viewing, recording, and analysing measurement data. If you’d like advice on compatible devices or setup requirements, please contact us and our team will be happy to help.
