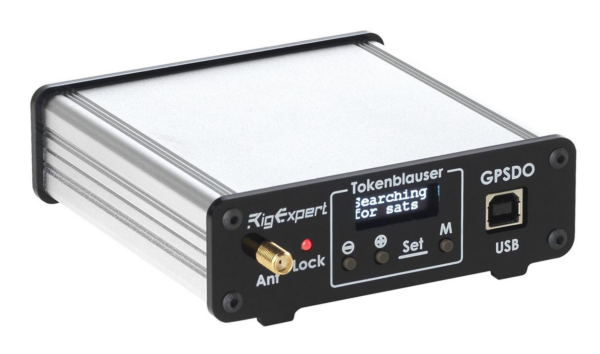

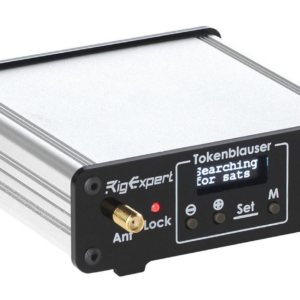

RigExpert Tokenblauser GPSDO
Customers outside of New Zealand, such as Australian and Pacific Islands, to avoid paying GST, please call our Australian or New Zealand numbers and we will arrange the sale.
AUS:+61 2 913 96 981 NZ: +64 9 448 2600
- Achieve impressive stability for frequency reading.
- Use the GPS-disciplined oscillator with super-accurate and super-stable characteristics to calibrate your gear.
- Enjoy experimenting with an Aurdino-compatible GPSDO embedded with open-source firmware.
- Four outputs allow you to simultaneously as a stable test signal and use the Tokenblauser for the GPS discipline of several devices.
- Getting the most out of your radio has never been easier.
Categories
We are GST registered in New Zealand and we charge in New Zealand Dollars. Foreign-based customers please email us or call our Australian or New Zealand numbers below and we can manually process the sale without New Zealand GST. For Australian customers we can also invoice in AUD and you can pay into our Australian bank account to minimise bank fees and complexities.
Â
Please note that you may be assessed for your countries duties and taxes on import as per your local regulations.
Â
- Description
- Download Datasheet
Description
- The TokenBlauser GPSDO from RigExpert achieves impressive stability for frequency reading.
- Use a specialized GPS generator with ultra-accurate and ultra-stable characteristics to calibrate your gear.
- Enjoy experimenting with Aurdino-compatible GPSDO built into open-source software.
- Four outputs allow you to simultaneously use Tokenblauser GPSDO as a stable test signal and for GPS discipline of multiple devices.
- PLL synthesized outputs – 4
- Output frequency range – 0.16 to 200/350/710 MHz (depending on a PLL type)
- Frequency setting – With 1 Hz steps (or very fine tuning with 1 ppt steps)
- Auxiliary output – 10 MHz
- Frequency stability – 0.001 ppm or better
- Signal levels – 3.3V CMOS logic
- Output connector – BNC
- GNSS antenna type – External, active, 3.3V
- GNSS constellations – GPS, Galileo
- Dimensions – 100mm x 100mm x 25mm (PCB), 105mm x 105mm x 35mm (enclosure)
- Accessories inside the box – 12V power adapter (EU or US), GPS active antenna, USB cable, User’s manual
- Note – Made in EU, Specifications are subject to change without notice
- GTIN-13 – 4820185420440
This may be an indent item.
Related Products
RigExpert AA-2000 2 GHz cable analyser
$2,095.00 Excl. GST
RigExpert Case - AA Zoom series
$375.00 Excl. GST

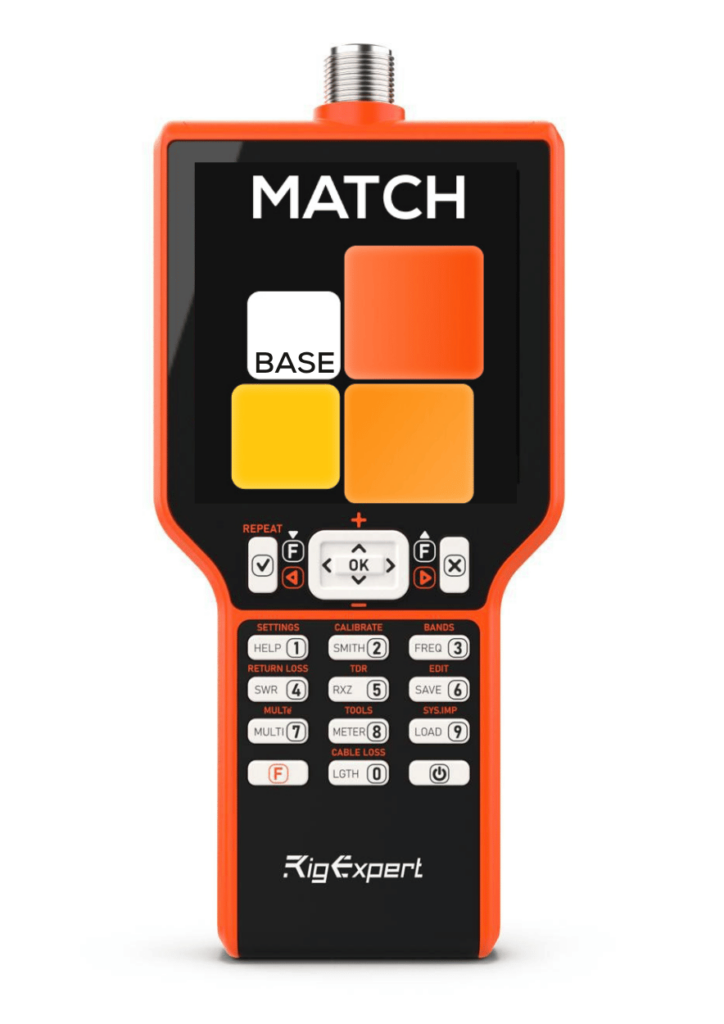

RigExpert Upgradeable MATCH 0.1 to 70MHz Antenna & Cable Analyzer
