Seaward PAC3760DL
$1,495.00 Excl. GST

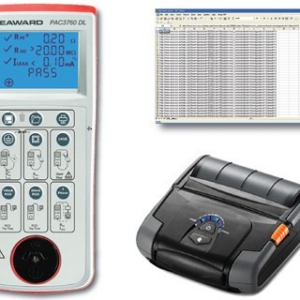

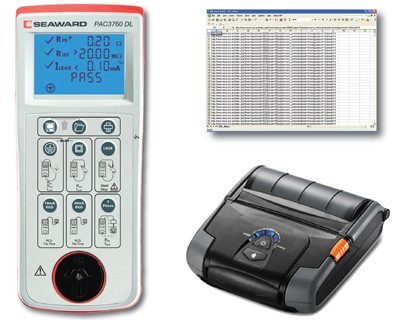

The Seaward PAC3760DL is a portable appliance tester for checking electrical appliances, RCDs and, with an optional adaptor, three-phase appliances. It stores up to 999 test results and supports CSV downloads for electronic record keeping.
We are GST registered in New Zealand and we charge in New Zealand Dollars. Foreign-based customers please email us or call our Australian or New Zealand numbers below and we can manually process the sale without New Zealand GST. For Australian customers we can also invoice in AUD and you can pay into our Australian bank account to minimise bank fees and complexities.
Â
Please note that you may be assessed for your countries duties and taxes on import as per your local regulations.
Â
- Description
- Specifications
- What's in the Box
- Options & Accessories
- Download Datasheet
Description

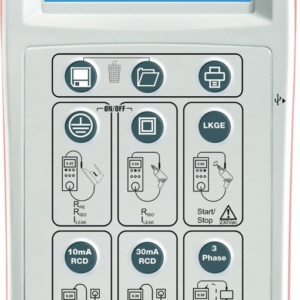

The PAC3760DL performs Class I and Class II tests, leakage tests, polarity checks and portable RCD trip-time tests. It displays pass/fail results alongside measured values.
Test results can be downloaded by USB in CSV format. An optional test tag printer supports test tag printing.
Key features
- Single push-button test operation
- Battery and mains powered
- Pass/fail indication with measurement values
- Test sequences for faster testing
- Class I and Class II testing, including leakage tests
- 10 mA and 30 mA portable RCD trip-time tests
- In-built isolation transformer
- Stores 999 test results and downloads them as a CSV file
- USB download for use with Excel spreadsheets
- Optional three-phase leakage testing with an adaptor
Applications and typical users
- Portable appliance testing
- Portable and fixed RCD testing
- Three-phase appliance leakage testing with an optional adaptor
Standards and compliance
- IEC61010-1:2001
- IEC61326:2005
NZ calibration and service available from Electrotest.
| Display | Bright LCD |
|---|---|
| Indication | Pass/Fail, Measurement Value |
| Operation | 9 Push Button |
| Enclosure | Hand-held, IP Rating IP40 |
| Leads | Earth Bond, IEC, Mains Supply, USB Download & Serial Printer. |
| Interfaces | USB & Serial |
| On-board memory | 999 Test Results |
| Download format | CSV File |
| Carry case | Deluxe Padded |
| Dimensions (LxWxH) | 265 x 110 x 55mm |
| Weight | 0.8kg |
| Overvoltage category | CAT II 300V |
| Electrical safety | IEC61010-1:2001, IEC61326:2005 |
| Polarity | Yes |
| Earth continuity | 200mA, 1Ω |
| Insulation resistance | 500V DC, 1MΩ |
| Class I leakage current | 5mA |
| Class II leakage current | 1mA |
| MOV devices Class I leakage current | 5mA |
| MOV devices Class II leakage current | 1mA |
| Lead/Cord Extension Sets with MOV Leakage Current | 1mA |
| 10mA RCD (with in-built isolation transformer) | 40ms |
| 30mA RCD (with in-built isolation transformer) | 300ms |
| Optional 3 Phase Leakage Test | 5mA |
| Test tag printer interface | Serial Cable |
| Test tag printer type | Thermal Direct |
| Test tags | General Indoor & Outdoor |
- Earth Bond, IEC, Mains Supply, USB Download & Serial Printer leads
- Deluxe padded carry case
- Free software for downloading test results
- Optional 403A912P test tag printer
- SEA ELI-TPL 3 Phase Earth & Leakage Adaptor
- Optional PAC-TPL 3 phase adaptor
