Seaward PowerTest 200
New Zealand’s newest and best value electrical installations multifunction tester! 6 meters in one!
The Seaward PowerTest 200 multifunction tester has been designed to meet the needs of experienced electricians, but with safety features and an easy to use interface that makes it a great choice for those new to installation testing.
We are GST registered in New Zealand and we charge in New Zealand Dollars. Foreign-based customers please email us or call our Australian or New Zealand numbers below and we can manually process the sale without New Zealand GST. For Australian customers we can also invoice in AUD and you can pay into our Australian bank account to minimise bank fees and complexities.
Â
Please note that you may be assessed for your countries duties and taxes on import as per your local regulations.
Â
- Description
- Additional information
Description
Better value and easier to use than many single function meters, and lower cost of ownership with only one instrument to calibrate:
- Volt Meter
- Insulation Tester
- Continuity Tester
- RCD Tester
- Loop Impedance Tester
- Phase Rotation Tester
Key Features
- Voltage measurement up to 440V
- Continuity test with autostart and null facility to zero out lead resistance
- Insulation resistance measurement with 250, 500 & 1000V test voltages
- RCD testing: Trip time, trip current (0.5, 1, 2 and 5 times the rating, dependent on device), auto test and ramp test
- Test RCDs in auto mode and simply recall the test results once finished
- Loop impedance and PSC or PFC readings can be shown on one screen
- Non-trip loop impedance
- Loop impedance – high current with auto start and direct readout of PSC
- Phase rotation test will indicate the correct phase sequence
- Integrated socket probe for easier testing
- Large backlight screen improving visibility even in difficult lighting conditions.

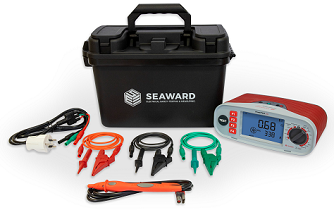

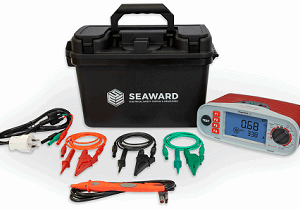

The PowerTest 200 is supplied with a compete kit of accessories as standard:
- Professional carry case
- Padded neck strap
- Mains lead
- 1.2M black test lead
- 1.2M red test lead
- 1.2M green test lead
- Black crocodile clip
- Red crocodile clip
- Green crocodile clip
- Remote probe with test buttons
- 6 x MN1500 (LR6) (AA) 1.5v batteries
- Spare 1.6A 1000v HRC FF fuse
- User manual
Additional information
| Weight | 5 kg |
|---|
