STRUCTURES/ Bridge Vibrations Experiment, EX-5548
The complete solution for understanding resonance in complex systems and driven vs. free vibrations, designed for use with PASCO Capstone Software.
WHAT’S INCLUDED
- 1x Large Structures Set (ME-7003)
- 1x PASPORT Load Cell Amplifier (PS-2198)
- 1x 100 N Load Cell (PS-2200)
- 5x 5 N Load Cell (PS-2201)
- 1x Mechanical Wave Driver (SF-9324)
- 1x Banana Plug Cord-Red (5 Pack) (SE-9750)
- 1x Rubber Cord for IDS System (30m Spool) (ME-8986)
- 4x Large Slotted Mass Set (2 kg Set) (ME-7589)
- 2x Short Mass Hanger (ME-7590)
- 18x 20 g Replacement Mass Set (ME-8983)
We are GST registered in New Zealand and we charge in New Zealand Dollars. Foreign-based customers please email us or call our Australian or New Zealand numbers below and we can manually process the sale without New Zealand GST. For Australian customers we can also invoice in AUD and you can pay into our Australian bank account to minimise bank fees and complexities.
Â
Please note that you may be assessed for your countries duties and taxes on import as per your local regulations.
Â
- Description
Description

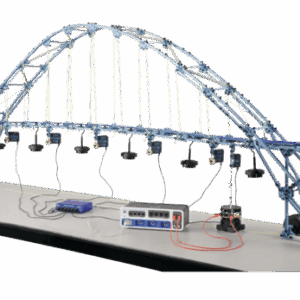

In this experiment designed for use with PASCO Capstone software, by using 5 N Loadcells at different positions on the bridge to measure bridge oscillations, students compare the driving force to the resulting acceleration. The bridge is struck by hand, and allowed to freely oscillate. PASCO Capstone generates a FFT graph which shows that there are several resonance frequencies and that the amplitudes differ based on location on the bridge.
Concepts
- Resonance in complex systems
- Driven vs. free vibrations
