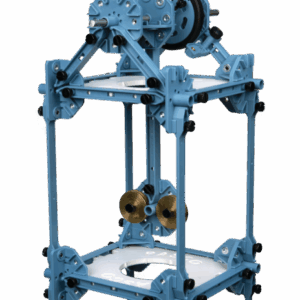

STRUCTURES/ Shaking Tower Experiment, EX-5555
Built from PASCO Structures beams, this tower is made to oscillate in its various resonance modes by a driver attached by a rubber band to the first floor of the tower.
WHAT’S INCLUDED
- 1x Shaking Tower (ME-7018)
- 1x Mechanical Wave Driver (SF-9324)
- 1x 2 Meter Patch Cord Set (SE-9415A)
- 1x Large Rod Base (ME-8735)
- 1x Stainless Steel Rod, 25 cm Threaded (ME-8988)
- 1x Large Slotted Mass Set (ME-7566)
- 4x Wireless Load Cell and Accelerometer (PS-3216)
WHAT TO CONSIDER
See the Buying Guide for this item’s required, recommended, and additional accessories.
We are GST registered in New Zealand and we charge in New Zealand Dollars. Foreign-based customers please email us or call our Australian or New Zealand numbers below and we can manually process the sale without New Zealand GST. For Australian customers we can also invoice in AUD and you can pay into our Australian bank account to minimise bank fees and complexities.
Â
Please note that you may be assessed for your countries duties and taxes on import as per your local regulations.
Â
- Description
Description
Built from PASCO Structures beams, this tower is made to oscillate in its various resonance modes by a driver attached by a rubber band to the first floor of the tower. Wireless Load Cells with Accelerometers are attached to each floor to record how much shaking each floor experiences.
In the second part of the experiment, a damping pendulum is installed on top of the tower. In modern buildings, passive damping mechanisms are installed to damp out oscillations during earthquakes. The damping pendulum in this tower quickly stops oscillations.
Designed for use with
- 850 Universal Interface or Function Generator
Concepts
- Explore the resonance modes
- Measure accelerations with wireless sensors
- Demonstrate passive damping
