Techimp PD Hub Permanent PD Monitoring Syestem
Techimp’s Partial Discharge (PD) Monitoring systems usually consists of a Central Unit and distributed Data Acquisition Units – the PD Hub™ – able to acquire and process the PD signals locally detected through PD sensors installed on each of main electrical assets (generator, transformer, HV cables and GIS).
We are GST registered in New Zealand and we charge in New Zealand Dollars. Foreign-based customers please email us or call our Australian or New Zealand numbers below and we can manually process the sale without New Zealand GST. For Australian customers we can also invoice in AUD and you can pay into our Australian bank account to minimise bank fees and complexities.
Please note that you may be assessed for your countries duties and taxes on import as per your local regulations.
- Description
Description

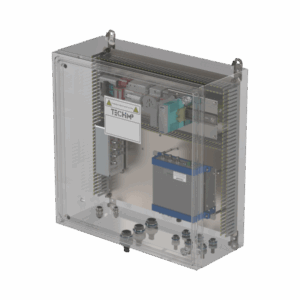

Per each set of three, six or twelve PD sensors, one PD Hub™, consisting of an Acquisition Unit (PDCheck™ or PDScope™) housed in an IP65 Acquisition Box, will be installed close to the asset under monitoring.
The PD Hub™ will collect the partial discharge signals (high frequency signals) coming from the sensors. A fibre optic communication network will connect all PD Hubs™ to the Central Unit placed in Control Room, where the partial discharge data will be collected, stored and processed.
The PD Hub™ can also be installed as a standalone device for permanent monitoring of the asset while data are stored internally and are available for download at any time for detailed evaluation.
Benefits
- High protection degree: up to IP 68
- AISI Type 316L Stainless Steel
- Conditioned box option
- 3-6-12 channels
- Fully customizable
