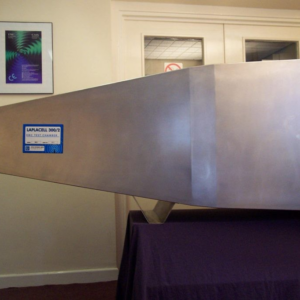

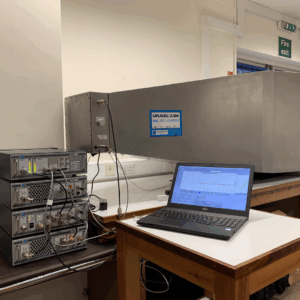

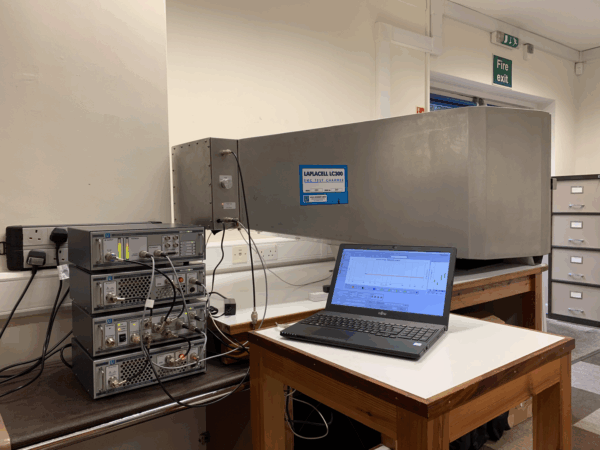

Test cells (LaplaCell): LC300/LC600

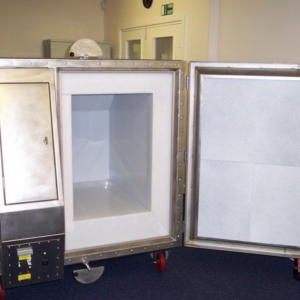

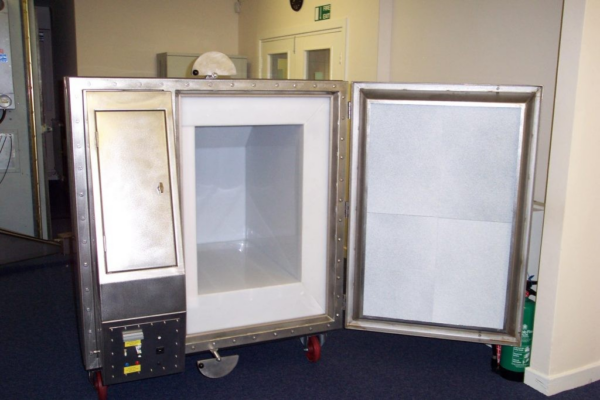

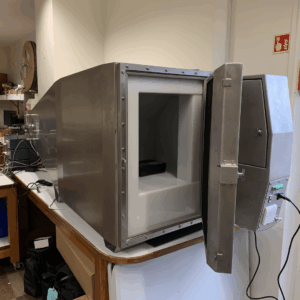

LaplaCells provide a facility for rapid and efficient testing of the EMC compliance of products. These cells offer a calibrated and screened environment in which radiated emissions can be measured and immunity to RF radiation can be tested. They exceed the requirements of IEC61000-4-20, thus affording compliant testing to IEC61000-4-3 and pre-compliance testing for radiated emission testing. The Cells are a modified form of GTEM cell, using a balanced dual septum design which maximises EUT volume for a given external size of cell, and dramatically improves field linearity. The EUT volume is fully lined in structural polycarbonate capable of supporting heavy products and access is via a large, full height door at the end of the cell. Adjacent to the door is the I/O filter compartment which can be customised to suit the users requirements. USB, RS232, Parallel, Ethernet, co-ax and other product specific filters can be added at time of ordering.
We are GST registered in New Zealand and we charge in New Zealand Dollars. Foreign-based customers please email us or call our Australian or New Zealand numbers below and we can manually process the sale without New Zealand GST. For Australian customers we can also invoice in AUD and you can pay into our Australian bank account to minimise bank fees and complexities.
Please note that you may be assessed for your countries duties and taxes on import as per your local regulations.
- Description
Description
Features:
- 30MHz to 6GHz frequency coverage
- Fully calibrated for emissions and immunity
- 2 sizes: Lc300: for EUT up to 30cm x 30cm x 30cm Lc600: for EUT up to 60cm x 60cm x 60cm (incl. 19″ racks up to 13u)
- Field sensor for immunity testing is included
- Calibrated in accordance with IEC61000-4-20
- Excellent field uniformity
- Compact size
- Ready for immediate use on delivery
- Standard filtered I/O includes mains feed, fibre optic access and 12 individual connections
