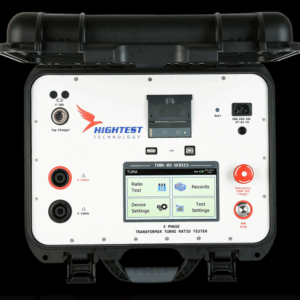

TURA-03
TURA-03 is designed using advanced engineering technology to measure the turns ratio of single-phase and three-phase transformers. TURA-03 has fast, easy and accurate TTR measurement features for current, voltage and power transformers using its user-friendly software. By using ANSI/IEEE C57.12.90 measurement method TURA-03 can produce precise results.
We are GST registered in New Zealand and we charge in New Zealand Dollars. Foreign-based customers please email us or call our Australian or New Zealand numbers below and we can manually process the sale without New Zealand GST. For Australian customers we can also invoice in AUD and you can pay into our Australian bank account to minimise bank fees and complexities.
Â
Please note that you may be assessed for your countries duties and taxes on import as per your local regulations.
Â
- Description
Description
Features:
Turns Ratio Measurement
(Single-phase and three-phase measurement)
Ranges from 0.8 to 50,000 ratio measurement
High Accuracy (0.08 %)
1V, 4V, 10V, 40V, 100V and 250V AC test voltage
Ratio Error Measurement
Magnetic Balance Test
Excitation Current, Phase Angle, Polarity Measurement
Built-in Printer
Automatic vector group detection feature
Internal memory, USB Flash Drive
PC control via USB cable
Optional Bluetooth control and communication
7-inch large colour touch display
