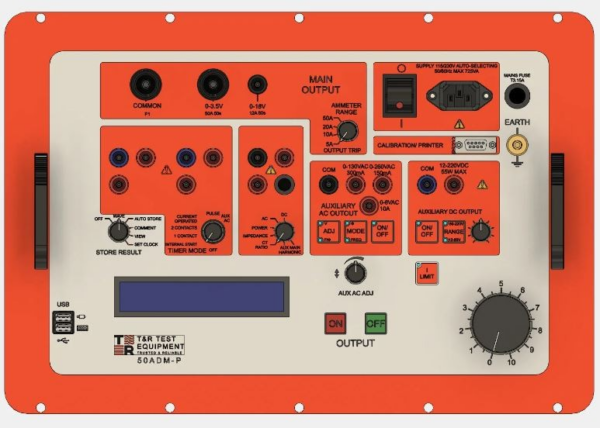

50ADM-P Secondary Current Injection Test Set
Engineered as a compact yet powerful solution, the 50ADM-P enhances testing efficiency and accuracy across various applications, from current injection to relay phase shifting.
- Description
Description
- 0-50A output current
- True RMS metering with 1 cycle capture
- Variable auxiliary AC voltage/current output with phase shift
- Auxiliary metering input V, f, φ, Z, P, S, PF, CT ratio, harmonics
- Variable auxiliary output 12-220VDC
- Multi-function auto-range timing system
- Current limit mode for fine control
- Data storage to USB memory key including waveform & harmonics
- USB keyboard/printer interface
- Automatic mains voltage selection
