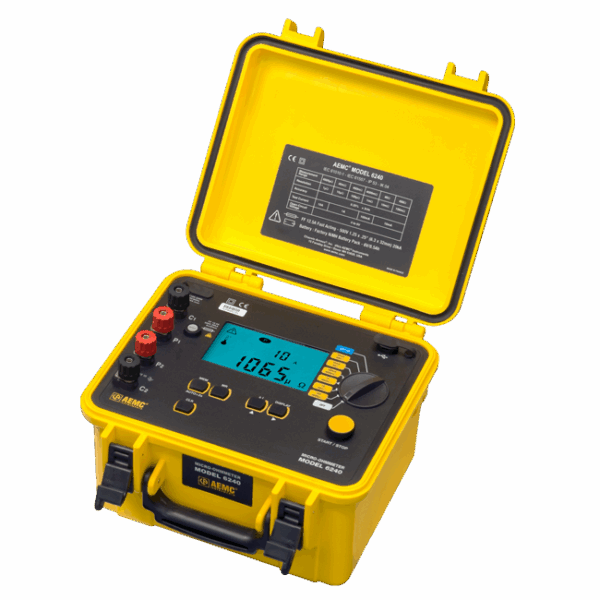

AEMC Model 6240 Micro-Ohmmeter
The new Micro-Ohmmeter Model 6240 from AEMC
The 10A Micro-Ohmmeter Model 6240 is a rugged, low resistance tester designed for both plant maintenance and field use. Utilizing a four-lead Kelvin method of testing, the Model 6240 Micro-Ohmmeter accurately measures very low resistance within 0.25%.
Resistance measurements are automatically calculated from 5 µΩ to 400 Ω with resolutions down to 1 µΩ. The Model 6240 has selectable test currents of 10 A, 1 A, 100 mA and 10 mA and includes a polarity reversal function. The Model 6240 is designed to conduct tests on both resistive and inductive material. Up to 99 measurements can be stored and printed directly to a printer or from a PC.
DataView® (included) allows you to configure the instrument, temperature-compensate the test results, store data, and print reports.
- Description
Description
Micro-Ohmmeter Model 6240
The 10A Micro-Ohmmeter Model 6240 is a rugged, low resistance tester designed for both plant maintenance and field use. Utilizing a four-lead Kelvin method of testing, the Model 6240 Micro-Ohmmeter accurately measures very low resistance within 0.25%.
Resistance measurements are automatically calculated from 5 µΩ to 400 Ω with resolutions down to 1 µΩ. The Model 6240 has selectable test currents of 10 A, 1 A, 100 mA and 10 mA and includes a polarity reversal function. The Model 6240 is designed to conduct tests on both resistive and inductive material. Up to 99 measurements can be stored and printed directly to a printer or from a PC.
FEATURES:
- Reliable low resistance measurements from 5 μΩ to 400 Ω
- Four-terminal Kelvin resistance measurement eliminates test lead resistance
- 10 A test current up to 4000 μΩ
- ± 0.25 % basic accuracy
- 1 μΩ resolution
- Direct reading, easy-to-operate
- Six selectable resistance ranges
- Reverse polarity button
- Overload and input fuse protection
- Manufactured to international safety and environmental standards
- Automatic decimal point and zeroing
- Large terminals accept banana plugs and spaded lugs
- Rechargeable NiMH battery with internal charger (110/220 V) (can be charged during operation)
- Large multifunctional backlit display
- Includes power cord and isolated USB cable
- Includes DataView® software for data retrieval, real-time display, analysis and report generation
