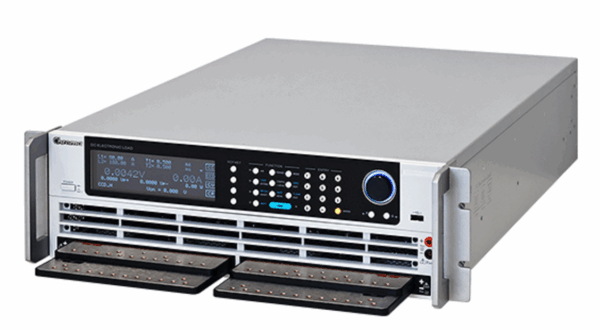

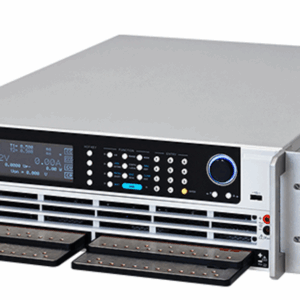

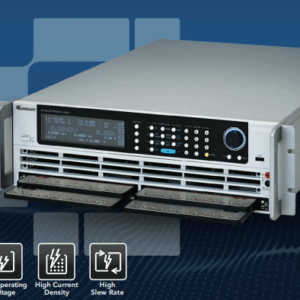

Chroma ULTRA LOW VOLTAGE DC ELECTRONIC LOAD MODEL 63202A-20-1000 / 63202A-20-2000
The Chroma 63202A-20 Ultra Low Voltage DC Electronic Load series, including models 63202A-20-1000 and 63202A-20-2000, is designed for testing low-voltage, high-current devices like point-of-load converters (POLs), DC-DC converters, and voltage regulator modules (VRMs). With a low-inductance terminal design and the ability to operate at voltages as low as 0.25V, it is ideal for power supply products below 1.0V. It offers various operating modes, supports User Defined Waveforms (UDW), and can be controlled via multiple interfaces. The unit also features three fan control modes and multiple safety protections, making it suitable for both development and testing environments.
We are GST registered in New Zealand and we charge in New Zealand Dollars. Foreign-based customers please email us or call our Australian or New Zealand numbers below and we can manually process the sale without New Zealand GST. For Australian customers we can also invoice in AUD and you can pay into our Australian bank account to minimise bank fees and complexities.
Â
Please note that you may be assessed for your countries duties and taxes on import as per your local regulations.
Â
- Description
Description
KEY FEATURES
- Â Rated power: 2kW
- Â Voltage range: 0 – 20V
- Â Current range: 1,000A*/2,000A
- Â 0.25V@2,000A Low Voltage operating characteristics
- Â CC, CR, CV & CP operation modes
- Â 255 programmable sequences
- Â User-Defined Waveforms (UDW)
- Â External signal control for current simulation
- Â Low-inductance terminal design
- Â Low-Inductance Load Cable (Optional, under patent examination)
- Â Standard USB interface
- Â Optional GPIB, Ethernet, CAN BUS interface
