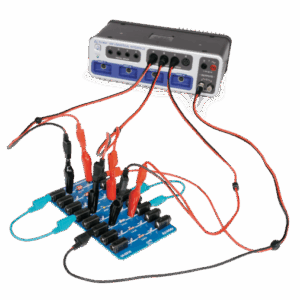

ELECTROMAGNETISM/ LRC Circuit Experiment, EX-5537
The complete solution for examining the response of a series LRC circuit with various driving frequencies. This complete solution is designed for use with PASCO Capstone Software.
WHAT’S INCLUDED
- 1x Resistor Capacitor Inductor Network
- 3x Voltage Sensor (unshrouded)
- 8x Banana Plug Cord Sets, 30 cm Length
- 1x BNC Function Generator Output Cable (unshrouded)
We are GST registered in New Zealand and we charge in New Zealand Dollars. Foreign-based customers please email us or call our Australian or New Zealand numbers below and we can manually process the sale without New Zealand GST. For Australian customers we can also invoice in AUD and you can pay into our Australian bank account to minimise bank fees and complexities.
Â
Please note that you may be assessed for your countries duties and taxes on import as per your local regulations.
Â
- Description
Description
The response of a series LRC circuit is examined at driving frequencies above, below, and at the resonant frequency. A sinusoidal voltage is applied individually to a resistor, a capacitor, and an inductor. The amplitude of the current and the phase difference between the applied voltage and the current are measured in each of the three circuits to see the effect each component has on the current. Finally, a sinusoidal voltage is applied to an inductor, resistor, and capacitor in series. The amplitude of the current and the phase difference between the applied voltage and the current are measured and compared to theory.
Concepts
- LC oscillations
- Inductive, capacitive, and resistive AC circuits
- LRC resonant frequency
