ELECTROMAGNETISM/ Magnetic Forces on Wires Experiment, EX-9933
The complete solution for exploring the variables (conductor length, current, magnetic field strength, and angle) that affect magnetic force.
WHAT’S INCLUDED
- 1x Basic Current Balance (SF-8607)
- 1x The Current Balance Accessory Kit (SF-8608)
- 1x Ohaus Cent-O-Gram Balance (SE-8725)
- 1x Low Voltage AC/DC Power Supply (SF-9584B)
- 1x Base and Support Rod (ME-9355)
- 5x Banana Plug Cord-Red (5 Pack) (SE-9750)
- 5x Banana Plug Cord-Black (5 Pack) (SE-9751)
- 1x Magnetic Forces on Wires Experiment Manual
We are GST registered in New Zealand and we charge in New Zealand Dollars. Foreign-based customers please email us or call our Australian or New Zealand numbers below and we can manually process the sale without New Zealand GST. For Australian customers we can also invoice in AUD and you can pay into our Australian bank account to minimise bank fees and complexities.
Â
Please note that you may be assessed for your countries duties and taxes on import as per your local regulations.
Â
- Description
Description

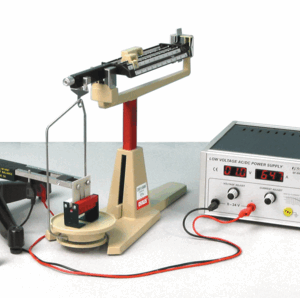

Magnets are mounted on an iron yoke and placed on a balance (resolution of at least 0.01 g). One of the conducting paths is suspended between the magnets. The balance is used to measure the mass of the magnets and yoke prior to any current passing through the conducting path. Current is then passed through the conducting path, producing a force. The change in reading on the balance can be converted to find the magnetic force between the conductor and magnetic field.
Conductors of different lengths are included to measure the effect of length on magnetic force. Magnetic field can be varied by changing the number of magnets in the yoke. The power source is used to change the current supplied to the conductor. The Current Balance Accessory includes all the components needed to test the effect of angle on magnetic force.
PASCO Advantage: PASCO’s Magnetic Forces on Wires Experiment allows students to study the key variables (conductor length, current, magnetic field strength, and angle) that affect magnetic force.
Concepts
- Examine the relationships between: force and current, force and length of wire, force and magnetic field strength, and force and angle
