Frankonia DOUBLE STACKED LOG.-PERIODIC ANTENNA – AXL-200
150 MHz – 4 GHz, For immunity tests acc. to automotive standards
The AXL-200 has especially been designed for the generation of high field strength levels acc. to automotive immunity standards. The small dimensions of the antenna does also allow to keep the min. required distance of 25cm to the floor, when testing in vertical polarization.
We are GST registered in New Zealand and we charge in New Zealand Dollars. Foreign-based customers please email us or call our Australian or New Zealand numbers below and we can manually process the sale without New Zealand GST. For Australian customers we can also invoice in AUD and you can pay into our Australian bank account to minimise bank fees and complexities.
Please note that you may be assessed for your countries duties and taxes on import as per your local regulations.
- Description
Description

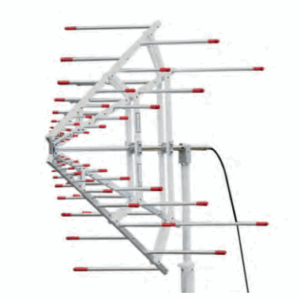

From the mechanical design it´s a double-stacked logarithmic periodic antenna, consisting of two excellent ordinary log.-periodic structures. This design guarantees a high and flat gain of 9-10dBi over a large bandwidth and a low SWR.
The stacked design helps to focus the directional pattern of the H-plane somewhat, resulting in a typical gain improvement of ca. 2 dB compared to an ordinary LP antenna. This is especially important for immunity testing, where a maximum field strength and a good field uniformity is required. The beamwidth in the E-plane and the H-plane are nearly identical, providing an optimized illumination of the EUT with minimized ground reflection influence. Further the AXL-200 has an excellent cross-polar rejection.
