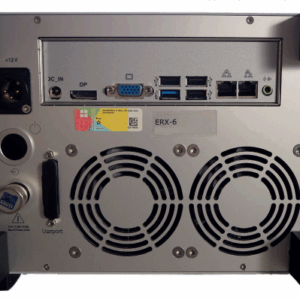

Frankonia EMI TEST RECEIVER - ERX-6 - Image 3

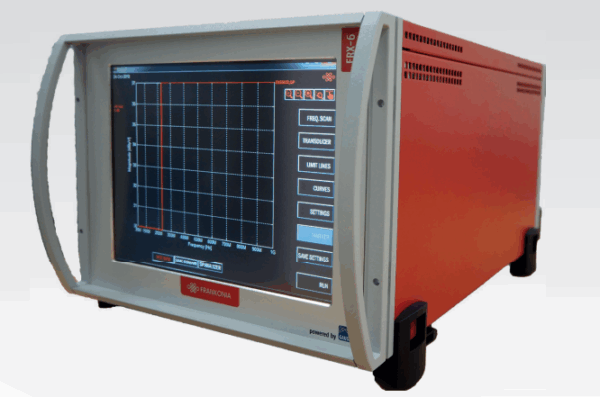

Frankonia EMI TEST RECEIVER – ERX-6

0 out of 5
( There are no reviews yet. )

Full compliant with CISPR 16-1-1, Ed.3.1 – 10 Hz to 6 GHz

Key Features:

  • Frequency range 10 Hz to 6 GHz (7 GHz as Option)
  • Traditional EMI-receiver mode acc. to CISPR 16-1
  • Ultra-fast FFT-based (time domain) EMI-receiver-mode acc. to CISPR 16-1-1, Ed. 3.1
  • Real-time Spectrum-Analyzer mode
  • About 6000 times faster than traditional receivers
  • Quasi-Peak, Peak, Average, RMS, RMS-AVG detectors
  • Remote control of the receiver, antenna mast and turntable by using our „EM-LAB“ software
  • Measurements acc. to CISPR, MIL, DO, VG, and ETSI-standards
  • Excellent noisefloor: 120 kHz (Band C/D), Typ. -15 dBµV, 1 MHz (Band E), Typ. <- 3dBµV

Download Brochure

Availability: Call us SKU: FRA ERX-6 Categories: , Brand:
Product Inquiry
Call Us

Frankonia EMI TEST RECEIVER – ERX-6

Out of stock
Add to wishlist

Description

The ERX-6 combines the advantages of a traditional EMI-receiver with the ultra-fast FFT-technology (time domain). Further more it offers the full functionality of a real time Spectrum Analyzer, which is very helpful to see immediate results of modifications on an EUT.

Optional available are a frequency extension up to 7 GHz, an integrated tracking generator (9 kHz – 6 GHz), a click analyzer function acc. to CISPR 14 and a battery pack for mobile operation.

Available options:

  • Frequency-extension up to 7 GHz
  • Integrated tracking generator (9kHz – 6 GHz)
  • Click analyzer function acc. to CISPR 14
  • Battery pack for mobile operation

Related Products

, ,

GDB-03 Oscilloscope Education And Training Kit Oscilloscope Education And Training Kit

Features Application for GDS-3000 /GDS-2000A/MSO-2000A/GDS-2000E demo and oscilloscope training 5Vdc Power Input (Support USB...
0 out of 5
Read more

, ,

P9084D Desktop Arbitrary Waveform Generators

9GS/s 16Bit, 4GS Mem 4CH 16 Markers The Proteus P9084D, is a 9GS/s,...
0 out of 5
Read more

, ,

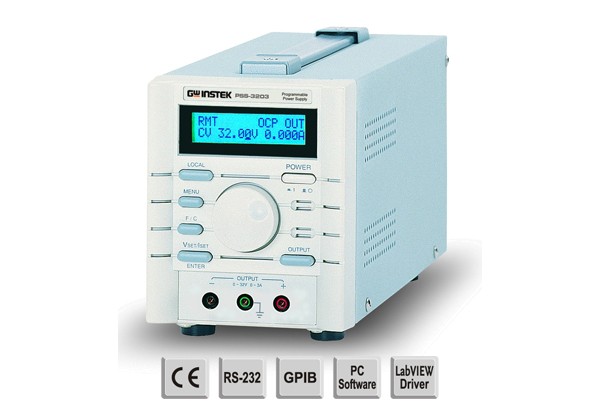

PSS-Series Programmable Linear D.C. Power Supply
