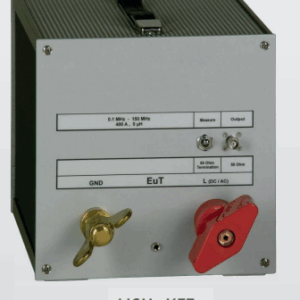

Frankonia LINE IMPEDANCE STABILIZATION NETWORK‘s – LISN-KFZ
acc. to automotive standards and MIL-STD
Technical Data:
- Frequency range: 100 kHz – 150 MHz
- Max. cont. current: 70 A
- Max. current (limited time): 100 A
- Max. voltage DC: 500 V
- Max. voltage 50/60 Hz: 250 V
- Max. voltage 400 Hz: 130 V
- Impedance: (5 µH + 1 fi ) || 50 fi ±10 %
- Resistance of coil: < 5 mfi
- Impedance at 50 Hz: 4.2 mfi
- Impedance at 400 Hz: 13 mfi
- Weight: 650g
- Connector EuT: 7mm wing terminals
- RF output: BNC (optional N)
- Dimensions incl. connectors W x H x D: 160mm x 210mm x 165mm
- Description
Description
The main application of the unsymmetrical single path AMN (artificial mains network) LISN-KFZ is the measurement of interference voltage in vehicles, aircrafts and ships in the HF-VHF range 0.1 – 150 MHz. The LISN can also be used for bulk current injection (BCI) testing or for transient measurements according to ISO 7637-2. The impedance characteristic is realized according to CISPR 16/25 and MILSTD-461F (5 µH + 1 Ω) || 50 Ω. With the optionally available external capacitor CAP 10 it can be used for DO-160 and DEF-STAN59 as well. The continuous current rating is 70 A, for short time more than 100 A are possible. The EUT is connected to the wing terminals at the front panel. The mains terminals are on the backside.
