GLP-1A
Features
- Combining a Logic Probe and Pulser Combined into One
- Probe for Troubleshooting Digital Circuits
- Operating Voltage: 4VDC ~ 18VDC
- Maximum Input Signal Frequency: 50MHz
- TTL: Logic “1”>3.0V±0.25V, Logic”0”<0.75±0.25V
- CMOS: Logic “1”>60%VCC±5%, Logic”0”<15%VCC±5%
- Minimum Detectable Pulse Width: 10nsec
- Pulser: Sync input impedance 120kΩ
- Pulse Repetition Rate: Switchable 0.5/400Hz
- Pulse width: 10μsec
- Dimensions & Weight: 18(W)x210(H)x18(D)mm, Approx. 50g
- Description
Description

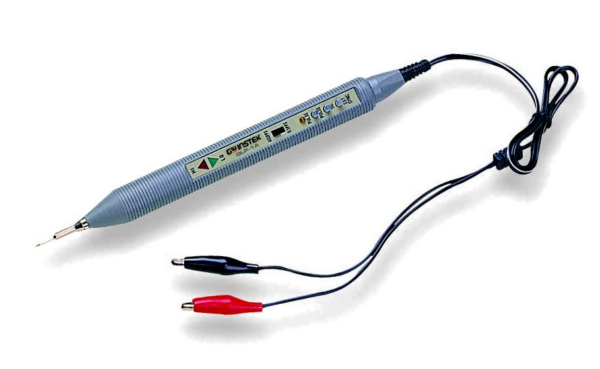

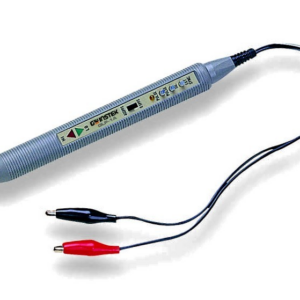

The GLP-1A logic pulser can be used to perform in-circuit testing of TTL, CMOS, and many other logic devices at a maximum of 50MHz. The GLP-1A is enhanced with a logic probe function with a minimum detectable pulse width of 10 ns, providing enough sensitivity for most applications. A Short 10 sec pulse width assures that no damage will occur to circuits whilst testing. With a weight less than 50g, a non-slip grip, and an external sync input, GLP-1A provides comfort and reliability for various troubleshooting tasks.
