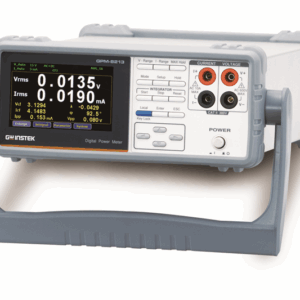

GPM-8213
Features
- 4” TFT LCD
- Two data display modes
- Standard : two major measurement items + six secondary measurement items
- Simple : displaying test data of four different measurement items
- Met the requirement of IEC 62301 power measurement
- Voltage/ current test frequency bandwidth : DC~6kHz
- Watt resolution : 1mW
- Lowest current range : 5mA, resolution : 0.1uA
- Current/voltage measurements reach CF=3 for distorted wave and CF=6 for half range
- W-h (power vs time)/A-h (current vs time) integration function
- Total harmonic distortion measurement
- Front panel test terminal
- Standard interface : RS-232C, USB device, LAN
- Optional interface : GPIB
- Optional test fixture : GPM-001
We are GST registered in New Zealand and we charge in New Zealand Dollars. Foreign-based customers please email us or call our Australian or New Zealand numbers below and we can manually process the sale without New Zealand GST. For Australian customers we can also invoice in AUD and you can pay into our Australian bank account to minimise bank fees and complexities.
Please note that you may be assessed for your countries duties and taxes on import as per your local regulations.
- Description
Description
GW Instek GPM-8213 power meter is designed specifically for single-phase (1P/2W) AC power supply’s power measurements. Powerful features, including 4” TFT LCD, five-digit measurement display, 19 power measurement parameters, integral measurement function, high-accuracy voltage/current/power measurement capabilities, front/rear panel input terminals, and various communications ports, are to facilitate users with clear, convenient, and accurate power measurements.
